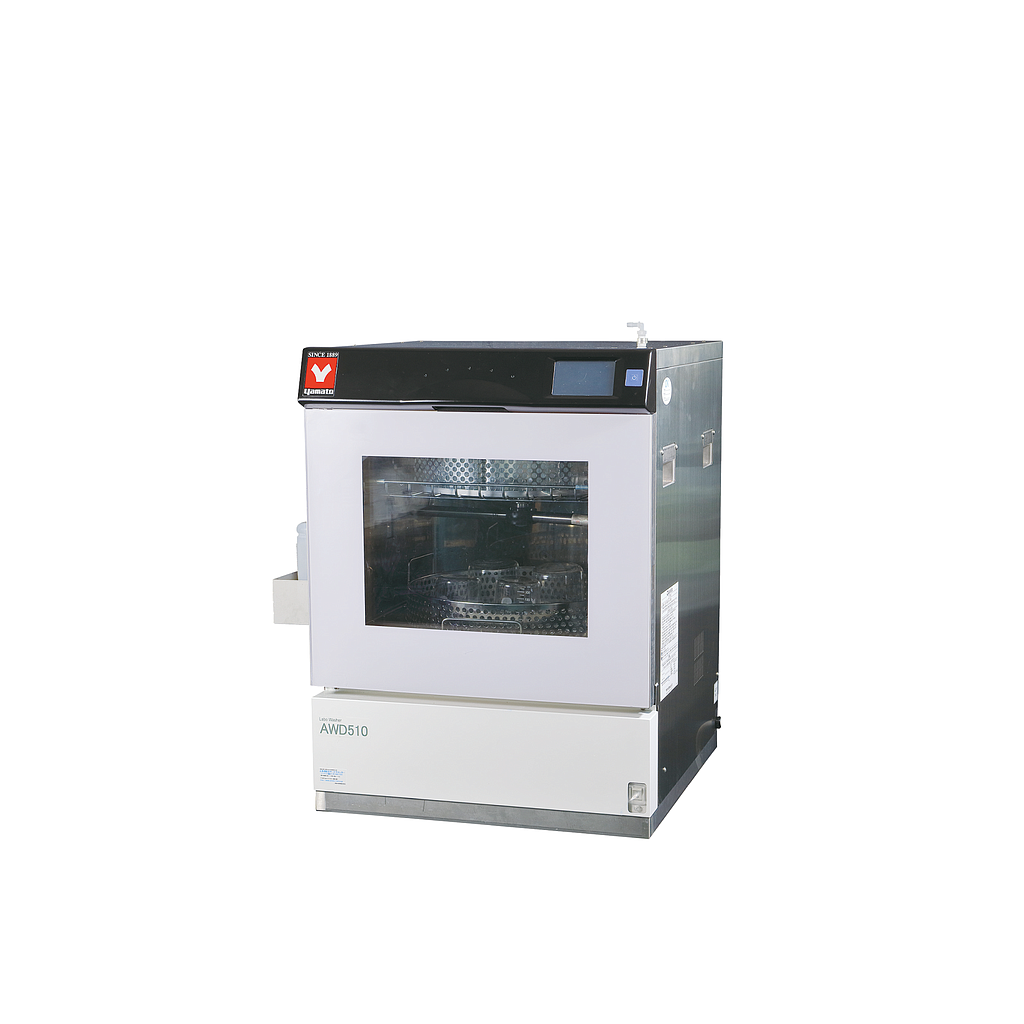

Yamato AWD510DRY Laboratory Washer (2kW)

Washing system: Upper/Middle/Lower-stage rotating jet nozzles

Washing process: Pre-washing, Washing, Rinsing, Rinsing with pure water (optional), Pre-drying (optional)

Water temp.: Set Off to Max. 80℃ (pre-washing/washing), Max. 93℃ (rinsing)

Hot-water supply: 2kW Pipe heater

Detergent supply: Automatic weighing and loading (liquid detergent)

Drain method: Hot water cooling and forced draining with pump

Drying method: Hot-air drying (HEPA filter, fixed at approx. 60℃ )

Water supply Tap water (Necessary): Temp. 5 to 25℃, Raw water feed pressure 0.1～0.5MPa, G3/4 (main unit), G1/2 (primary)

Water supply Hot water (Discretionally): Temp. 5 to 60℃, Raw water feed pressure 0.1～0.5MPa, G3/4 (main unit), G1/2 (primary)

Detergent: Dedicated detergent (optional)

Pure water connection (Discretionally ): Raw water feed pressure 0.02～0.1MPa, Hose nipple I.D. 10.5mm

Exterior: Stainless steel plate （SUS304）

Interior: Stainless steel plate （SUS316）

Leg: Level adjuster

Display: 4.3-inch LC touch panel/LED lamp (process)/Interior lighting color by process

Safety Device: Over current/Electric leakage breaker, Overheat prevention, Door lock, Water leak detector

Drying method (optional): Hot-air drying (HEPA filter, fixed at approx. 60℃ )

Over current/Electric leakage breaker, Overheat prevention, Door lock, Water leakage Raw water supply hose (for tap water and hot water), Drain hose, Lid for removing upper-stage rack, Stainless steel rack for detergent, Drain hose clamp, Overflow water hose, Detergent tube

Internal dimensions（W×D×H mm）: 500×480×480mm

External dimensions（W×D×H mm）: 580×600×845mm

Power Source: AC220V 13A Single phase with step-down transformer

Weight: 87kg
