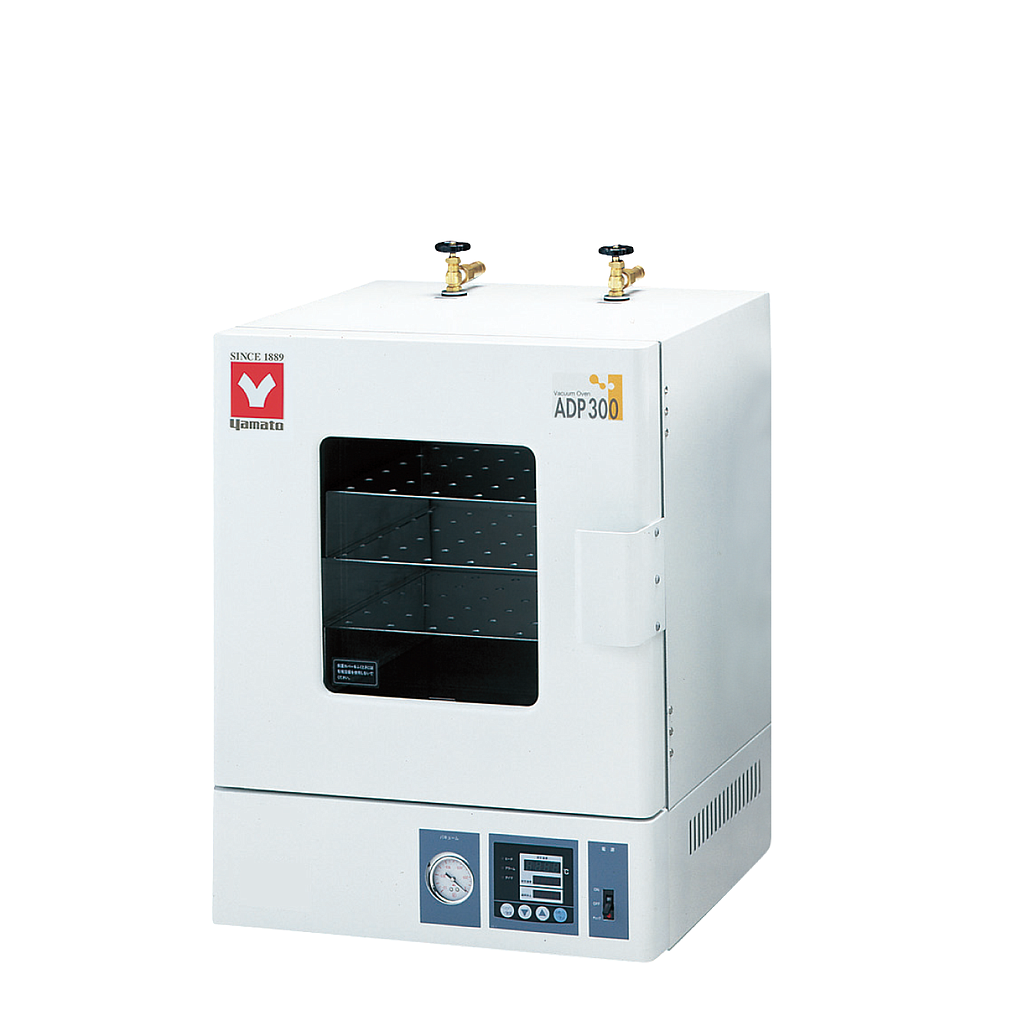

Yamato ADP300 Standard Small Size Benchtop Vacuum Drying Oven (27L, 1.05kW)

System: Vacuum drying by decompressed chamber direct heating

Operating temperature range: 40~240°C

Operating pressure range: 101~0.1kPa (760~1 Torr)

Temp. control accuracy: ±1.5 °C (at 240 °C) JTM K05

Max. temp. reaching time: Approx. 100min.

Interior material: Stainless steel

Temp. control method: PlD control by microprocessor

Heater: Mica heater 1.05kW

Heat insulating material: Rock wool

Internal dimensions (WxDxH): 300×300×300mm

External dimensions (WxDxH): 500×463×669mm

Internal capacity: 27L

Vacuum port: O.D.18mm

Power source: AC220V 6A Single phase with step down transformer

Weight: Approx. 30kg

Accessories: Shelf plate (Aluminum punting metal) 3 pcs. with Load capacity: 15kg / pcs
