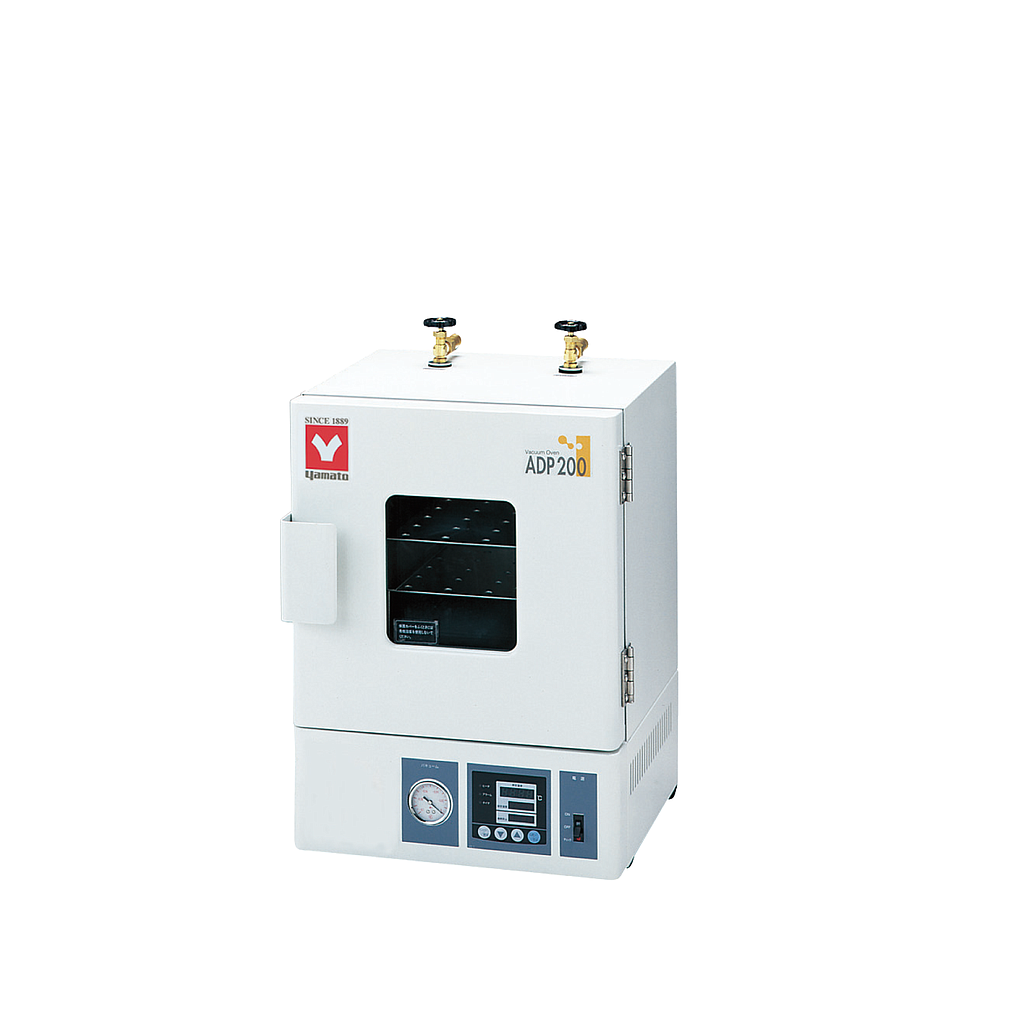

Yamato ADP200 Standard Small Size Benchtop Vacuum Drying Oven (10L, 680W)

System: Vacuum drying by decompressed chamber direct heating

Operating temperature range: 40~240°C

Operating pressure range: 101~0.1kPa (760~1 Torr)

Temp. control accuracy: ±1.5 °C (at 240 °C) JTM K05

Max. temp. reaching time: Approx. 70min.

Interior material: Stainless steel

Temp. control method: PlD control by microprocessor

Heater: Mica heater 680W

Heat insulating material: Rock wool

Internal dimensions (WxDxH): 200×250×200mm

External dimensions (WxDxH): 400×411×565mm

Internal capacity: 10L

Vacuum port: O.D.18mm

Power source: AC220V 4A Single phase with step down transformer

Weight: Approx. 30kg

Accessories: Shelf plate (Aluminum punting metal) 2 pcs. with Load capacity: 15kg / pcs

Datasheet
