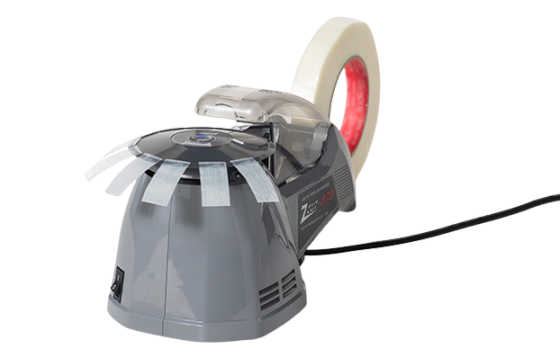

Yaesu ZCUT-870 Tape Dispenser (15～70mm, 3～25mm)

Cutting Length: 15～70mm

Tape Width: 3～25mm

Usable Tapes: Filament, Polyimide, Acetate, Glass Cloth, Double-sided, Aluminum Foil, Cellophane, Masking, Polyethylene, Copper Foil, Cotton Cloth, Teflon, Paper Tape and Others

Max. Roll Diameter: 150mm

Fuse: 2A

Rated Voltage: AC 100-240V 50/60Hz 25W

Body Material: ABS

Dimension: 126×150×258mm (W×H×D)

Weight: 1.9kg

Features

Increase Productivity for your taping jobs.

Movable Sensor can be set at the place where Turntable stops.

Possible to set the number of Tape-cutting.

Simple and Easy Tape-setting.

Bobbin-free structure.

Blades are fixed and no need for adjustment. Easy to change as well.

Capable to cut tough tapes; Polyimide, Glass Cloth and Acetate Cloth tapes etc.

Edge of Cut-tape is sharp and neat.

Change the Cut-length and Spacing by knob.

Number of cutting pieces can be set.
