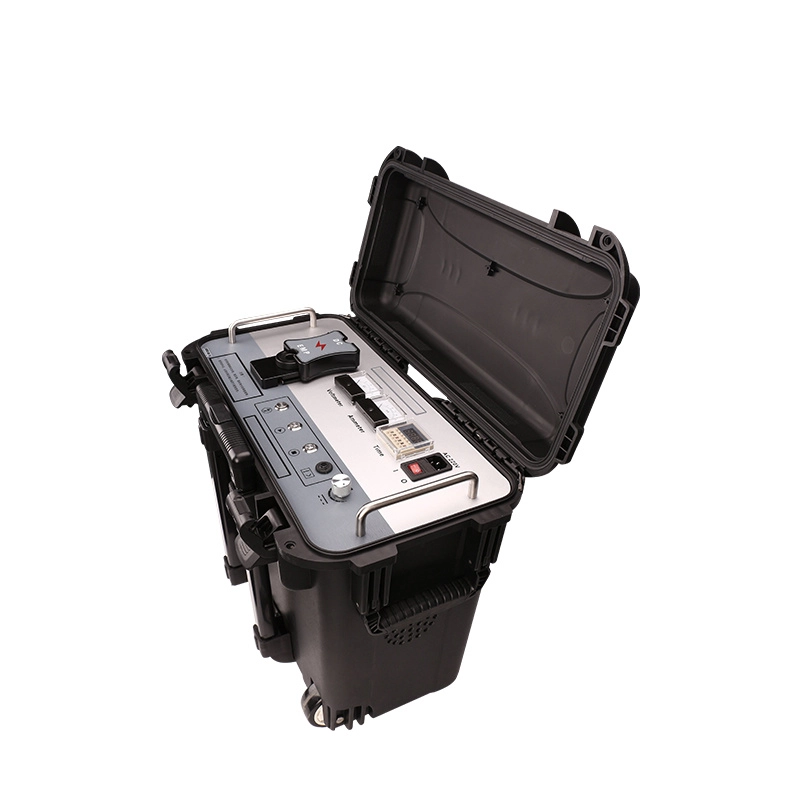

XZH Test XHHV515-12L Low Voltage Surge Generator for Cable Fault Testing (12kV)
ManufacturerXZH Test(View more products from this manufacturer)
ModelXHHV515-12L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Impact high voltage: 0~12kV
High voltage partial pressure: 2.5 level
Built-in capacitor: 12μF
Output voltage polarity: Negative polarity
Impact power: 250W@peak
Working mode: Selectable/adjustable impulse rate or single shot
Cable length: High-voltage output: 2m, Ground: 3m, Power: 1.8m
Minimum DC output current: 30mA at 12kV
Over temperature protection: 65°C
Over current protection: 8mA (more than 3 seconds)
Dimensions (mm): 540L × 300W × 450H
Weight: ≤ 25kg
Power supply: AC220V±15%, 50Hz±2Hz (60Hz)
Operating temperature: -20°C~+60°C
