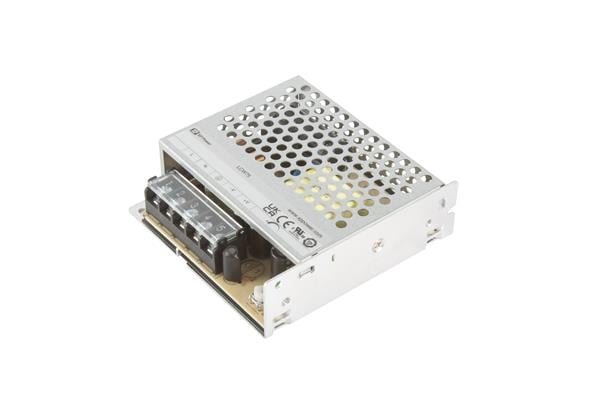

XP Power LCW75US48 Convection Cooled AC-DC 75W INDUSTRIAL

Width: 97 mm

Height: 30 mm

Length: 92.5 mm

Industry: ITE, Industrial, Household

Approvals: CE, EN, UL

Dimensions: 92.5 mm x 97 mm x 30 mm

Efficiency: 90 %

Output Power: 75 W

Input Voltage: 85 VAC to 305 VAC, 120 VDC to 430 VDC

Mounting Style: Chassis

Input Frequency: 50 Hz, 60 Hz

Load Regulation: 0.5 %

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.6 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
