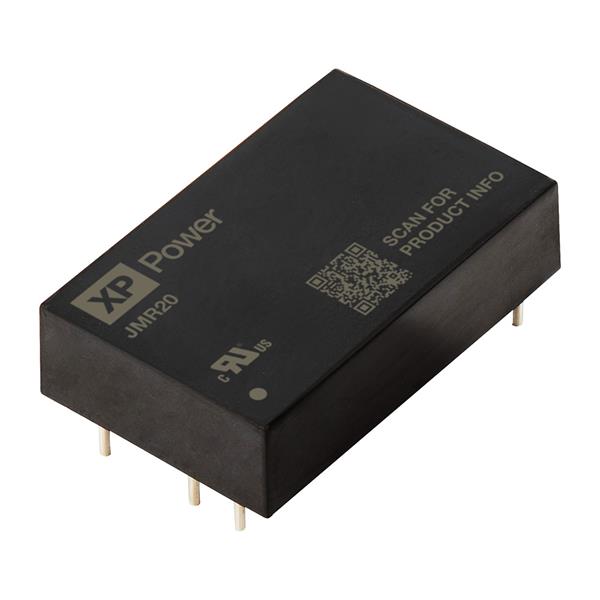

XP Power JMR2024S05 Isolated 20W PCB DIP24 9-36VDC input 4:1 medical DC-DC converter, single output 5VDC 4.0A

Width: 20.3 mm (0.799 in)

Height: 10.2 mm (0.402 in)

Length: 31.8 mm (1.252 in)

Industry: Medical, Industrial

Dimensions: 40.6 mm x 25.4 mm x 10.2 mm

Output Power: 20 W

Input Voltage: 9 VDC to 36 VDC

Mounting Style: Through Hole

Isolation Voltage: 5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 4 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
