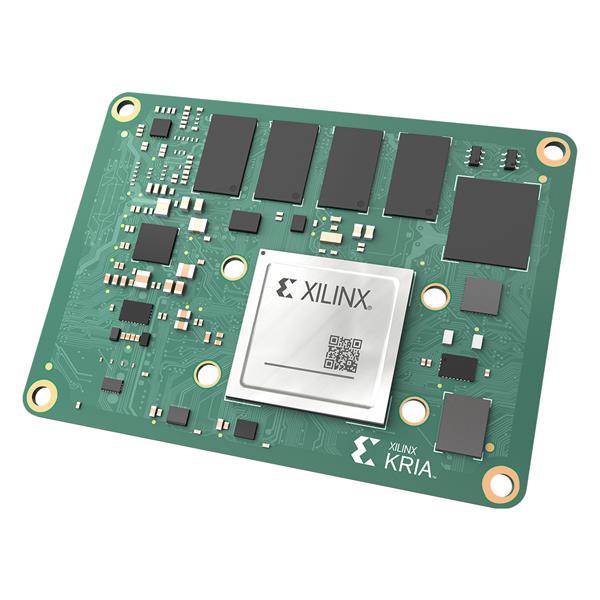

Xilinx SM-K26-XCL2GI System-On-Modules - SOM K26I SOM

Flash: 64 MB, 16 GB

Chipsets: K26I

Frequency: 533 MHz, 1.33 GHz

Dimensions: 77 mm x 60 mm x 10.9 mm

Memory Size: 4 GB

Memory Type: DDR4

Cache Memory: L2

Installed RAM: 4 GB

Interface Type: CAN, GPIO, I2C, SDIO, SPI, UART, USB

Processor Type: XCK26-SFVC784-2LV-I

Processor Brand: Xilinx

Power Consumption: 15 W

Description/Function: Adaptive System On Module

Maximum RAM Capacity: 4 GB

On-Board Storage Size: 16 GB

On-Board Storage Type: eMMC

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
