XHinstruments XHX-22 Fiber Microscopy (2-200um)

Measuring Range: 2-200um

Measurement Accuracy: +/-0.1um

Dimension: 640mm×600mm×560mm

Power Supply: AC 220V±10% 50Hz

Product Description:

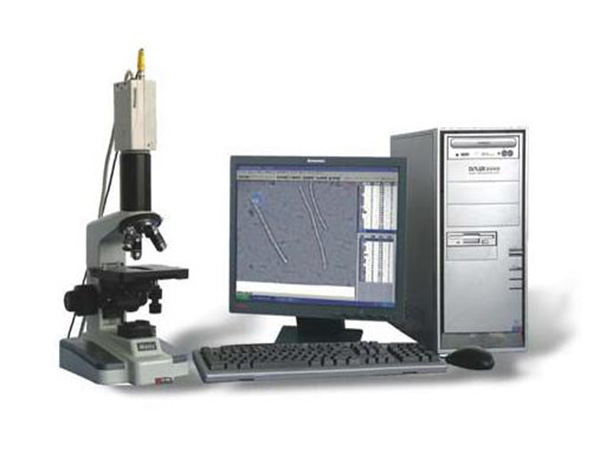

Fiber Microscope Analyzer is applies to determine fiber diameter or sectional area through special software. The instrument connects the Optical Microscope and the computer by High-resolution Industrial Camera, and relies on the professional analysis software to finish the test work of fiber diameter and sectional area.

Test Standards: GB/T 10685, GB/T 16988, FZ/T32004, ISO 137, AATCC 20A, IWTO-8, IWTO-47-00

Product Features:

1. Operation: can real time adjust and measure the fiber photo on the screen, can operate machine easily without special training.

2. Fast measurement speed.

3. High Repeatablity Accuracy: the measurement accuracy is better than 0.1um.

4. Multi measurements mode: system support manual measurement, semi-automatic measurement, automatic measurement. Can complete animal fiber, chemical fiber, cotton fiber, hemp fiber’s inspection..etc and detail statistical analysis.

5. Professional statistical analysis: during the measurement, can complete various statistical, real time display quantity, average diameter, max diameter, min diameter, CV, standard deviation, fiber content. Distribution graphs..etc.

6. Print: Display and print fiber photo in black and white photo or color, one key operation. Panasonic camera and Olympus microscope is equipped on the machine。

7. With microscope and our professional software.

8. Report: output data and reports forms by Excel or Word.

9. Fully automatic measurement and statistical is by computer.

10. Testing method: Projection and Cross-sectional method.
