Drop Height: 300-1200mm
Specimen Max Weight: 50-60kgs
Specimen Max Dimension: 700mm×700mm×700mm
Drop Panel Area: 1000×1500mm
Dimension: 1000x1500x2030mm
Weight: 350kgs
Power: 220V, 50Hz
Product Description:

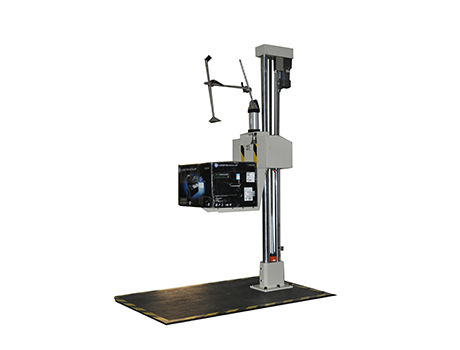

Package Drop Impact Tester is driven by a pneumatic cylinder controlling a single wing structure. It only takes a small space to operate and is ideally suited for testing the impact of cartons, luggage cases, suitcases, electric equipment, etc. It can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status.
Test Standards: ISO 2248, JIS Z0202-87, ASTM D5276.
Product Features:
1. Pneumatic single arm dropping
2. Machine structure is stable and strong
3. Motor has brake function to adjust to a precise height
4. Screw transmission
5. Method of adjust the height: motor+Axel
6. Hydraulic pressure buffering device
7. Remote control rise, stop, down, drop action
