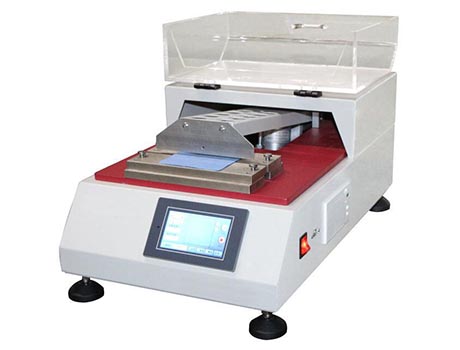

XHinstruments XHV-06 Handle O-Meter ((10-1000)mN)

Measuring range: (10-1000)mN

Resolution: 0.1 mN

Test accuracy: +/-1%

Total trip of measuring head: 12mm (adjustable)

Pressing depth of measuring head: 8mm

Slit width of the specimen stage: 5mm, 6.35mm, 10mm, and 20mm

Parallelism error: +/-0.05mm

Centre error of measuring head: +/-0.05mm

Testing speed: 1.2mm/s (adjustable)

Dimension: 560mmx340mmx250mm

Weight: 25Kgs

Power supply: 110V/220V, 50Hz/60Hz

Product Description:

This Handle O-Meter obeys the related prescription mentioned in American and international standards, it is used to test the softness for material , such as middle or high grade tissue , tobacco sheet, fabric and so on. Large touch screen display, real time display curves.

Test Standards: TAPPI T 498 , ASTM D 2923
