Test Range: 0-12mm
Resolution: 0.1μm
Test Accuracy: ±<0.3μm
Feeding Space: 0 - 1000 mm (Adjustable)
Feeding Speed: 1.5 ~ 80 mm/s (Adjustable)
Test Pressure and Contact Area: For film: 17.5 ± 1 KPa, 50 mm2, For paper: 100 ± 1 KPa, 200 mm2.
Power Supply: AC220V50Hz/ AC120V60Hz
Dimension: 300mm(L)×400mm(W)×435mm(H)
Weight: 30Kgs
Configuration: Machine, Auto Sampler, PC Software, PC and Printer
Product Description:

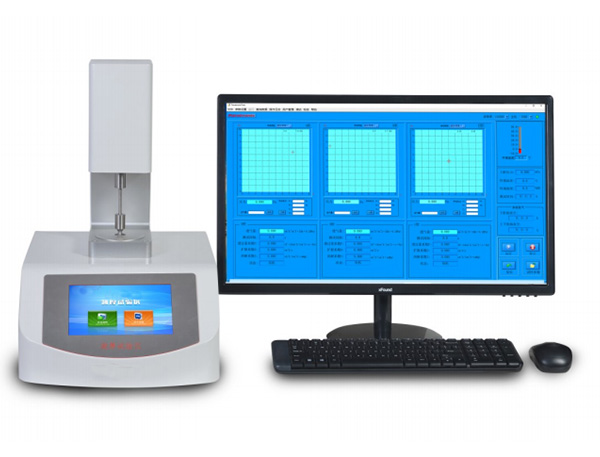

Thickness Tester is a high precision mechanical contact method thickness tester, which can be used for thickness measurement of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc. Auto sampler is optional, which is designed for multiple successive points thickness measurement.
Test Standards:
ISO 4593, ISO 534, ASTM D6988, ASTM F2251, GB/T 6672, GB/T 451.3, TAPPI T411, BS 2782-6, DIN 53370, ISO 3034, ISO 12625-3, ISO 5084, ASTM D374, ASTM D1777, ASTM D3652, GB/T 6547, GB/T 24218.2, FEFCO No 3, EN 1942, JIS K6250, JIS K6783, JIS Z1702
Product Features:
1. The detachable threaded connection counterweight can meet various standard requirements and non-standard pressure customization
2. Embedded high-speed microcomputer chip control, simple and efficient human-computer interaction interface, providing users with comfortable and smooth operation experience
3. The design concept of standardization, modularization and serialization can meet the individual needs of users to the greatest extent
4. The touch screen operation interface can also be connected to a computer for operation, connected to an automatic sampler and comprehensive data processing
5. 7-inch high-definition color LCD screen, real-time display of test data and curves
6. Imported high-speed and high-precision sampling chips effectively ensure test accuracy and real-time performance
7. Built-in micro-printer, which can realize real-time historical data printing function
8. The standard RS232 interface facilitates the external connection and data transmission between the system and the computer
9. The contact area and measurement pressure are designed in strict accordance with the standard, and various non-standard customizations are supported at the same time
10. High-precision thickness sensor, high precision and good reproducibility
11. Standard thickness measurement tools can be used for calibration and inspection
12. A variety of test ranges are optional
13. The analysis data such as the maximum value, minimum value, average value and standard deviation of the measurement results are displayed in real time, which is convenient for users to judge
