Main Configuration: Mobile Needle Plate Frame, Coating Roller, Scraper
Control: Electronic
Material: Whole machine use SUS 304 Stainless Steel
Coating Size: Max Coating Size: 500mmx300mm, Effective Coating Size: 370mmx300mm
Mobile Needle Plate Frame: Can be with fabric into lab stenter
Coating Roller: Diameter 40mmx300mm
Scraper: Stainless steel material, angle 30 degree before coating
Coating thickness: 0-5mm
Resolution: 0.01mm
Coating Parameter: Modify coating parameter via modify scraper’s vertical position, roller position.
Transmission: Ball Screw, imported guide rail
Speed: 0-1 meter/min adjustable
Power Supply: 220V, 50Hz
Dimension: 540mmx650mmx540mm
Weight: 66Kgs

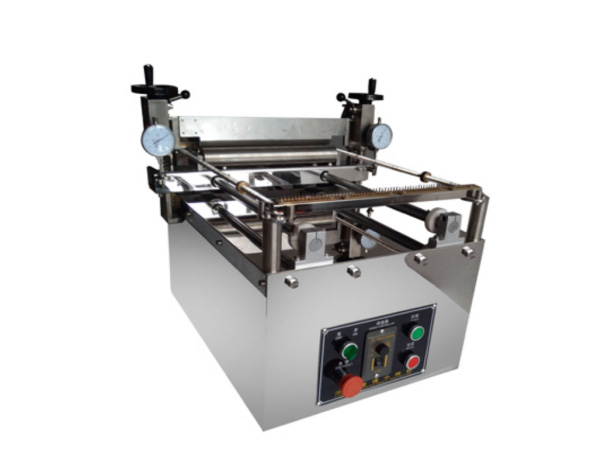

Product Description: The lab coating machine is used for textile and other materials.
