Test Method: Method A and Method B
Testing Range: Method A: 50-2000 g ; Method B: 300-2000 g
Accuracy: 0.1 g (0.1J)
Specimen Clamp: Pneumatic Clamp
Pressure of Gas Supply: 0.4-0.5 MPa (customer prepare)
Falling Height: 0.66±0.01m(A）1.50±0.01m(B）
Diameter of Punch Head: φ38±0.1mm, φ50±0.1mm
Specimen Size: > 150 mm x 150 mm
Power Supply: AC 220V 50Hz, Single Phrase
Weight: 65Kgs
Standard accessories to run this machine, customer only need to prepare air source:
Product Description:

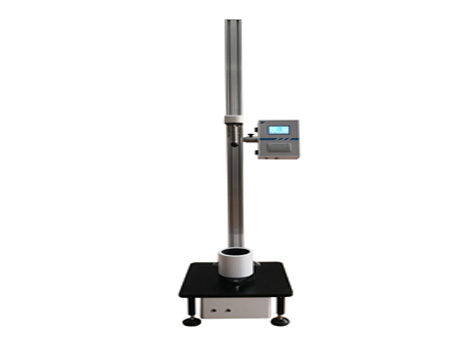

Falling Dart Impact Tester: Before starting the test, choose test method, and estimate an initial mass and Δm. Start the test. If the first specimen fails, decrease the mass of the falling dart by Δm. If the first specimen is not a failure, increase the mass of the falling dart by Δm. Continue the test according to this rule. In brief, increase or decrease by Δm according to whether the former specimen is a failure or not. After 20 specimens, calculate the total number of failed specimens N. If N equals to 10, the test is over. If N is less than 10, add specimens and continue to test until N equals to 10. If N is greater than 10, add specimen and continue the test until the number of non-failure specimens reaches 10. Then the tester calculates the test results automatically according to specific formulas.
Test Standards: ASTM D1709, ISO 7765-1, JIS K7124-1, GB/T 9639.1
Product Features:
Electromagnetic suspension and automatic release of the falling dart reduce the errors caused by manual operation.
Pneumatic clamping, 2 starting modes of manual and pedal switch and built-in observation light are convenient to the user's operation.
Touch screen operation and control, no need human mark, automatic calculate.
Can print results via mini thermal printer.
