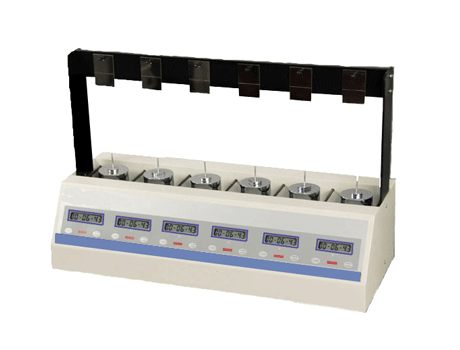

XHinstruments XHS-11 Lasting Adhesion Tester

Standard Roller: Standard Roller

Weight: 1000±3g ( with triangle hook)

Test Plate: 125（L）×50（B）×1.5（D）mm

Timing Range: 0-99h59min59s

Testing Stations: 3 or 6

Dimension: 320(L)×210(B)×550(H)mm ( 3 stations); 605(L)×210(B)×550(H)mm ( 6 stations)

Weight: 10 kgs ( 3 stations) 15kgs ( 6 stations)

Power Supply: 110V/220V, 50Hz/60Hz

Product Description:

Principle :

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.

Test Standards: GB/T 4851, ASTM D3654, JIS Z0237.

Product Features:

Standard test plates and weights ensure the accuracy of test data.

The instrument is controlled by micro-computer, with PVC operation panel, membrane switches and LCD, which is convenient for customers to operate and view test data

Three or Six testing stations could test groups of specimens simultaneously, also can individual control each station.

Auto timing and locking functions provide higher accuracy of test result
