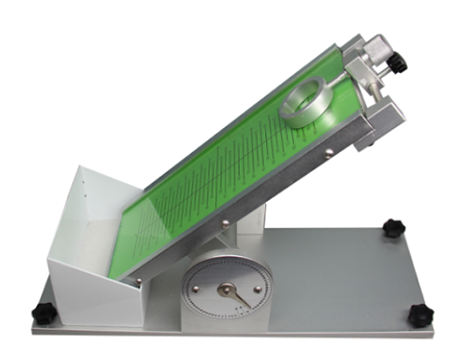

XHinstruments XHS-10 Primary Adhesive Tester

Adjustable Angle: 0º -40º

Panel Width: 120mm

Test Area Width: 80m

Standard Steel Balls: 1/32-1inch

Dimensions: 320 mm (L) x 140 mm (B) x 180 mm (H)

Net Weight: 6Kg

Product Description:

Primary Adhesive Tester is applicable in primary adhesive tests of pressure sensitive adhesive tapes, adhesive bandage (plaster), label, protective films and other products.

Product Features:

The instrument is designed according to the inclined surface rolling ball method and can be used for tack determination of specimens

The steel balls of the instrument are designed according to national standards, which guarantees the accuracy of test data

The inclined angle of the instrument can be adjusted freely to meet customer’s requirements
