Charpy energy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J
Izod energy: 1J, 2.75J, 5.5J, 11J, 22J
Resolution of impact energy: 0.001J
Pendulum up angle: 160°
Impact speed: Charpy: 2.9m/s for 1J, 2J, 4J, 5J 3.8m/s for 7.5J, 15J, 25J; Izod: 3.5m/s
Impact center distance: Charpy: 221mm for 1J, 2J, 4J, 5J; Charpy: 380mm for 7.5J, 15J, 25J; Izod: 322mm
Charpy distance between clamps: 40mm 60mm 70mm 95mm
Distance between jaw and impact edge: 22mm
Radius of striking edge (Izod): 0.8mm
Radius of striking edge (Charpy): 2mm
Dimension: 460×330×745mm
Weight: 190kgs
Power Supply: 110V/220V, 60Hz/50Hz
Product Description:

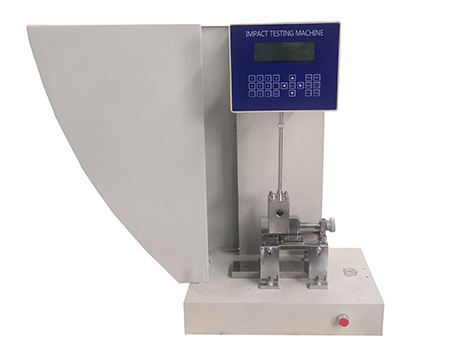

XHS-01 Charpy and Izod Impact Testing Machine is used for test engineering plastics, glass-steel, ceramics, casting stone, plastic wiring, insulating material, plastic pipe material and other non –metallic materials for anti- impact intensity.
Test Standards: ISO 179, ISO 180, ASTM D256
Product Features:
The products satisfy the standard demands of ISO 179 for Charpy, ISO 180, ASTM D256 for Izod. The electronic type adopts raster -display technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity, fore-elevation, ascending angle, automatic correcting energy losing, statistics function, with mini printer can print results.
both charpy and Izod test can be carried in one tester (by changing the fastness charpy seat and movement Izod seat), Unique and Innovative design ,run alternatively charpy and Izod tests without changing the instrument geometry
