Display: PC Display, Automatic Delivery Material
Impact Energy: 250J/500J
Impact Speed: 5.4m/s
Rise Angle: 150°
Seat Span: 40mm
Specimen Size: 10mmx10(7.5, 5, 2.5)mmx55mm
Product Description:

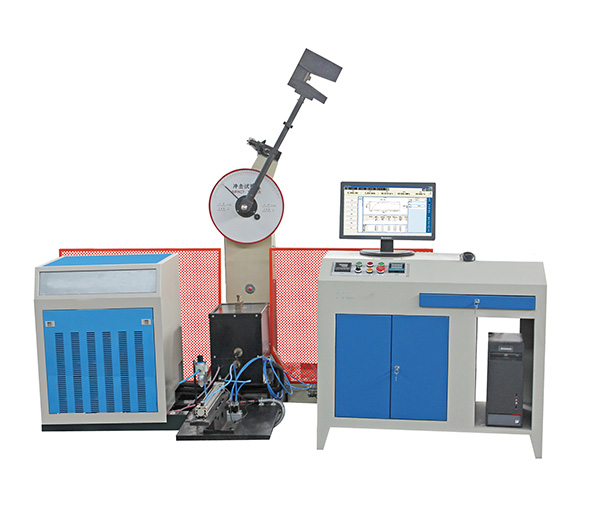

The XHL-06 Impact Testing Machine is used to test the performance of impact resistance under the live loac, being an indispensable device in metallurgy and machine manufacturing units and is also a necessary testing instrument for the research of new materials in research institution.
Test Standards: ISO 148, ASTM E-23
Product Features:
1. The principle of the Impact Testing Machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped;
2. The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
3. The specimen is supported via simply by supported beam;
4. Safety guard pin is arranged on the principle machine which is also provided with safety guard net;
5. The testing machine is controlled in a semi-automatic way, electric control is realized for pendulum rising, pendulum hanging, impacting and pendulum placing, the energy which is remained after the specimen is impacted broken can automatically rise the pendulum for the next testing; thus, the testing machine is suitable to be used in laboratories which make consecutive impact tests or the metallurgy and machine manufacturing sectors which are involved with a large amount of impact tests.
