Load Cell: 100N, 200N, 50N, 100N, 200N, 500N, 1000N, 2000N, 5000N
Accuracy: +/-0.5% of Indication Value
Strength Resolution: 1/500000
Drive System: AC Servo
Unit Switch: Kg, N, KN, LB, mm, Inch
Travel distance: 700mm (other travel distance according to requirement)
Extension resolution: Min 0.001mm
Speed: 0.01mm-500mm/min (adjustable)
Speed Accuracy: +/-1%(0.01-10mm/min); +/-0.5%(1-500mm/min)
Data acquisition rate: Max 1000Hz
Position Measurement: Omron Encoder
Software: Included with analysis and results output software
Tension Grips: According to to different material
Compression Plate: Diameter: 100mm
Power: 220V, 50Hz, Single Phrase
Dimension: 520×380×1600mm
Weight: 110Kgs
Product Description

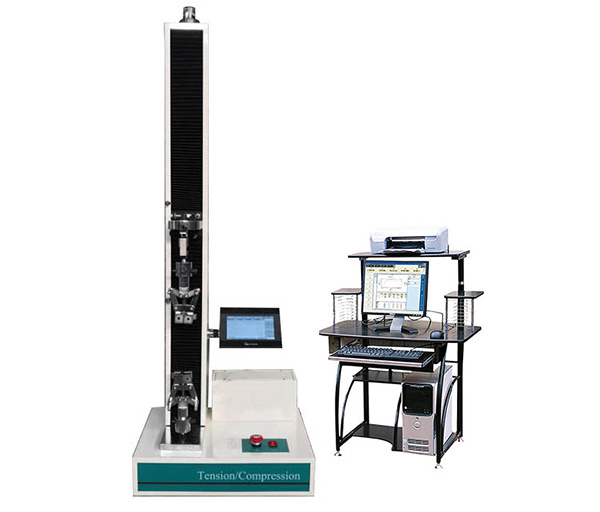

Electric Tensile Strength Tester is professionally applicable to measurement of tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force, pulling force and low speed unwrapping force as well as other properties of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foils, diaphragms, back sheets, non-woven fabrics, rubber and paper, etc.
Test Standards
ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.
Product Features
1. Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control
2. Modern linear guide technology, pre-loaded ball screws and advanced software.
3. No special computer required, controller is embeded in the host machine
4. Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.
5. Built-in of test methods meeting international test standards.
6. Pre-load test standards for ASTM standard and ISO standard for foam test
7. All test procedure is carried out easily with our professional software
8. Test automation and batch testing
9. Test creation is provided by software
10. Multi points load is calibrated to ensure calibration is accurate
11. History track function easy to track previous test results according to date, name..etc
11. Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000
12. Adopt high precision load cell to keep measurement more accurate and stable.
13. Automatically detection of the adjustment and calibration by electronic system and software.
13. Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000
14. High stiffness structure to 5KN
14. With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop
15. Test results can be directly output, or via bmp, excel, txt...etc
16. Dual Control, Touch Screen Operation and PC Operation
18. Cables Connection is very simple
