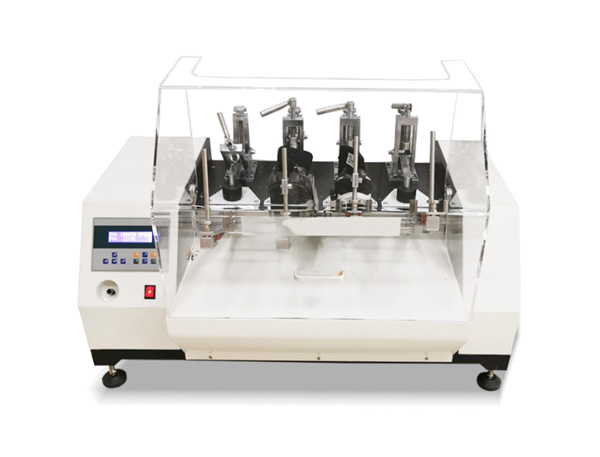

XHinstruments XHF-97 Whole Shoe Flexing Tester

Specimen: 2 Pairs(4pieces)

Bending Angle: 5°-90°(adjustable)

Testing Speed: 5-150 CPM (adjustable, display)

Counter: 0-999999

Motor: Frequency Motor

Dimension: 1050mmx830mmx780mm

Weight: 210kg

Power: AC220V, 50/60 Hz

Product Description:

Whole Shoe Flexing Tester is used for determining the flexibility resistance and or indicating the cracks of shoe or sole through reciprocating flexing movements under the specified angle and frequency. Besides the elegant profile, it possesses the feature such as grip easily, flex smoothly and operate stably with lower noises. On the other hand, the acrylic protection cover keeps the user away from a personal hazard during operation.

Test Standards: ISO 4643 5423 20344, SATRA TM 92

Product Features:

LED-SLD806 integrated display control box, menu operation mode

Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials

Precision frequency motor, stable operation and low noise

High-precision bearings are used for smooth and stable rotation and long active life

Protective door can protect the hands of the operator, automatic stop when door opened

Front and back clamp can be adjustable

Speed and angle is adjustable.
