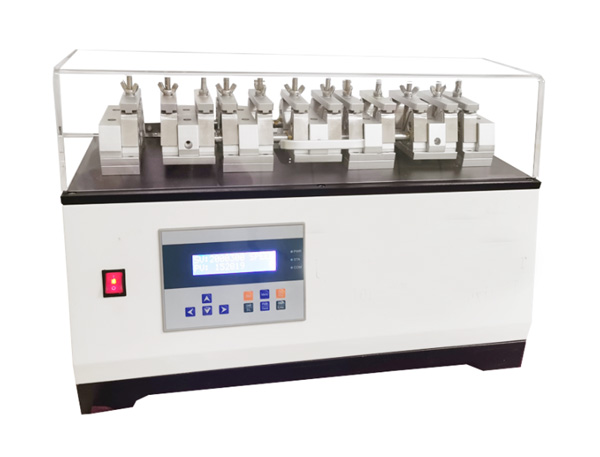

XHinstruments XHF-86 Vamp Flexing Tester

Sample Station: 12

Specimen dimension: 64mm×64mm

Frequency of oscillation: 300±30 cycles/min

Max opening between clamps: 28.5±1.0mm

Min opening between clamps: 9.5±.0.5mm

Angle between gripping faces: 40 degree ±.1 degree

Radius of V edge: 6.4 ±0.5mm

Counter: LCD 0-999999

Dimension: 550mm×350mm×300mm

Weight: 64Kgs

Power Supply: AC 220V±10%, 50Hz/60Hz

Product Description:

XHF-86 Vamp Flexing Tester is used to assess the tendency of all shoe upper materials, clothing leathers and upholstery coverings to crack or break as a result of flexing in wear. It is also suitable for testing leather, plastic coated fabrics, polymeric and woven fabrics.

Test Standards:  ISO 20344, ISO 2023, IUP 39 - ISO 4643, UNI EN 13335 EN ISO 4642 annex BIUP 39

Product Features:

LED-SLD806 integrated display control box, menu operation mode

The position can be adjusted by jog, and the test speed can be adjusted

Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials

Precision drive motor, stable operation and low noise

With counting and timing auto-stop function, the test can be automatically stopped by setting the test value

High-precision bearings are used for smooth and stable rotation and long active life

Protective door can protect the hands of the operator, automatic stop when door opened
