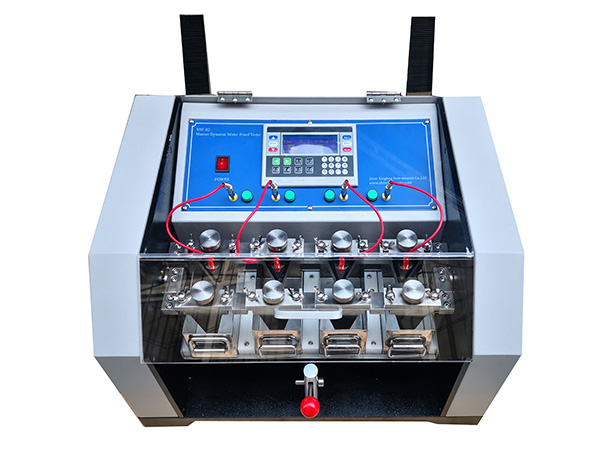

XHinstruments XHF-82 Maeser Dynamic WaterProof Tester

Specimen Number: 45383

Specimen Size: 4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm)

Ball total weight (Load): 135 ± 5gs

Ball size: 3mm

Testing displacement: 30 ± 1 °

Testing speed: 90±5cpm (adjustable)

Counter: LCD display, 0~999,999

Motor: 90W

Dimension(L×W×H): 700mm×450mm×460mm

Weight: 60kg

Power supply: AC220V,50Hz, Single Phrase

Product Description:

Maeser Dynamic Water-Proof Tester is used standard steel ball placed in the interrior ofleather, and in this way to do water-proof and twist testing. Testing before need to set the number of reverse and automatically shut down when the number arrive, the machine is equipped with a sensor, when the water infiltrate into the interior of leather, it will automatically stop counting time, and display the time of twist.

Test Standards: ASTM D-2099, SATRA PM-34, ALCA E56
