Specimen dimension: 65mmx560mm
Test Statation: 3
Clamp Width: 70mm
Load: 3LB/4LB
Distance Between upper clamp and lower clamp: 40-790mm
Moving distance of lower clamp: 750mm
Dimension: 60x40x114cm
Weight: 30Kgs

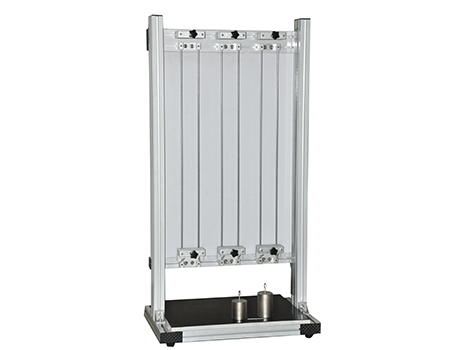

Product Description: Fabric Stretch and Recovery Tester is developed for testing the stretch, growth and recovery performance of elastic fabric by static test at a specified tension or specified extension, where universal tensile testers are not applicable due to time requirement.
Test Standards: ASTM 3107, ASTM D2594
