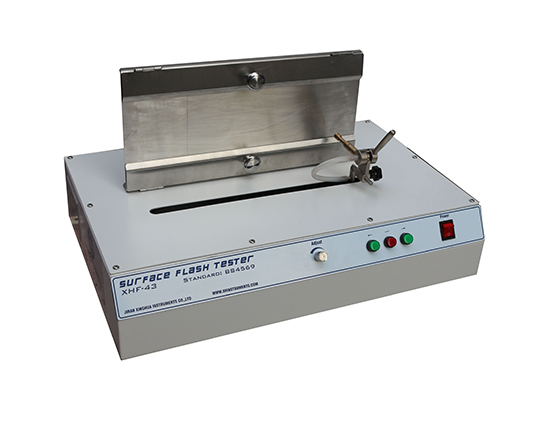

XHinstruments XHF-43 Surface Flash Tester

Clamp Length: 400mm

Burner moving distance: ≥300 mm

Burner moving speed: 150+/-5mm/s

Fabric pile altitude: 70mm

The distance between flame and surface of specimen: 5mm

Specimen size: length 200mm, width ≥130 mm

Specimen quantity: 2 pcs

Dimension: 600x410x320mm

Weight: 20kg

Power: 220V- 240V

Surface Flash Tester. The rapid spread of flame over the surface of the material without ignition of its basic structure, usually applied to pile or fur fabrics. Swivelling butane burner is traversed across the face of the fabric to determine whether surface flash occurs and to record any damage to the base fabric.
