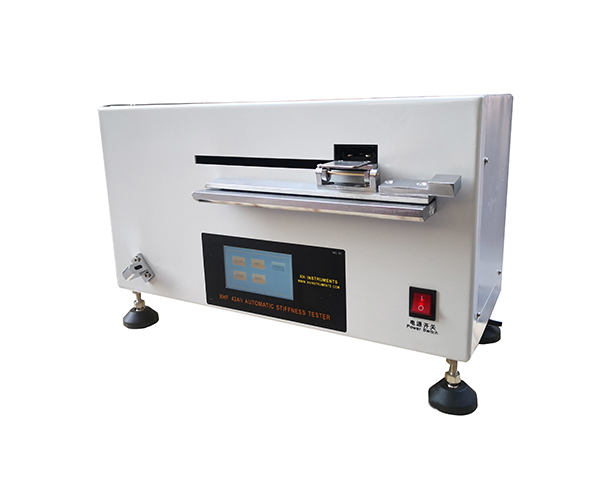

XHinstruments XHF-42AII Automatic Fabric Stiffness Tester

Working Pattern: Micro-Computer Controlled, Infrared Stealth Slant Detecting, Color Touch Screen Operation, Output Test Report from PC, Print Test Report Directly via Stylus Printer

Measuring Angle: 41.5°, 43°, 45° (Adjustable)

Platform Size: 40×250mm

Platen size: 25×250mm

Extension Measurement Range: 0.5-20.5cm

Test Accuracy: 0.01 cm

Test Speed: 0.1-5mm/s (adjustable)

Test Results: Each specimen bending length in cm, average bending length in cm, average bending stiffness in mN.cm, CV%

Power Supply: AC220V/50Hz

Dimension: 470×230×310mm

Weight: 18Kgs
