Drum diameter(mm): 800
Drum widit(mm): 300
Effective volume (L): 45
Leather loaded(kg): 11
Drum speed(r/min): 0-30
Motor power(kw): 0.75
Heating power(kw): 4.5
Tempered Glass: 10mm
Temperature range controlled(C): Room temperature-80±1
Length(mm): 1350
Width(mm): 1200
Height(mm: 1550
Product Description:

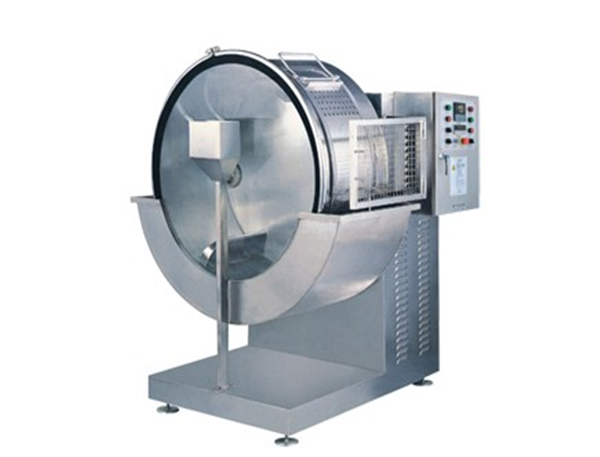

XHF-35 interlayer heating & circulating stainless steel temperature-controlled drum is essential laboratory equipment in modern leather-making industry, which is mainly used for test of various leathers in small batch and varieties, thus achieving the best processing technology. The equipment is suitable for wet operation in preparation, tanning, neutralizing and dyeing processes of leather-making.
Product Features:
1.The equipment is equipped with the advanced interlayer electric-heating & circulating system. The liquip inside the drum is totally separated with the heating medium in the interlayer of the drum so that the drum can be heated and maintained at a temperature when it is stationary. it is especially suitable for test at low ratio of liquids. All test data are accurate. The inside of the drum can be cleaned thoroughly so that there well be no any residual liquid and west residue remained. As a result of that, color spot or chromatic difference can be eliminated completely.
2.Speed of the drum is regulated by means of frequency convertor throught chain(or belt).It has advantages of stable drive and low noise.
3.The equipment has the timing functions of controlling total working cycle time,forward & backward rotation duration as well as single direction operation. Each duration can be set up through timer respectively so that the drum can work continuously or interruptedly.
4.Equipped with an intelligent temperature controller, automatic heat, constant-temperature hold and temperature control can be achieved accurately.
5.The observation window is made of fully transparent, high-strength & thermostable toughened glass so that there is no such phenomenon as distortion or dimming.
6.There is cleaning door and dredge trough so that wastewater can be discharged into the trough that makes the process clean. The equipment is also equipped with a safely device , which guarantees operation safe and reliable.
