Specimens size: Φ16±0.2mm, 6-14mm (thickness)
Load: 2.5N, 5N, 10N
Fixture lateral displacement: 4.2mm/wheel each lap
Wear Wheel diameter: 150mm±0.2
Roller length: 460mm
wheel rotate speed: 40±1r/min
Wear Stroke: 40m
Test method: Rotation/No Rotation
Dip angle: 3° the angle of the specimen back shaft with vertical roller face
Sand Paper: VSM-KK511X-P60
Dimension: 800mm ×400mm ×350mm
Weight: 61Kgs
Power Supply: AC 220±10%, 50Hz/ 60Hz
Product Description:

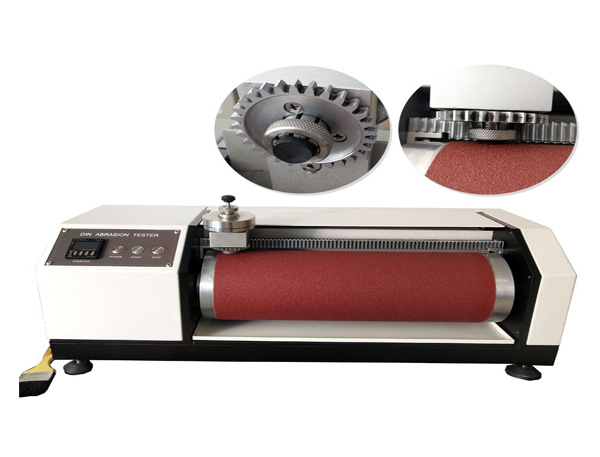

The DIN Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.
Principles:
Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.
Test Standards: BS-903 DIN53516 ISO-4649 GB/T 9867 SATRA TM174 JIS-K6264, EN12770, ISO 20871
Product Features
Refined standard rolling, dual-axis fixed, smooth rotation without jumping
The machine body is painted electrostatically, which is beautiful and durable
Precision drive motor, stable operation and low noise
High-precision ball screw control movement speed
Imported high-precision bearings, low friction and high precision
Both non-rotating and rotating tests can be used in common
Metal LED keys, durable and beautiful
Power-off memory digital display counter
