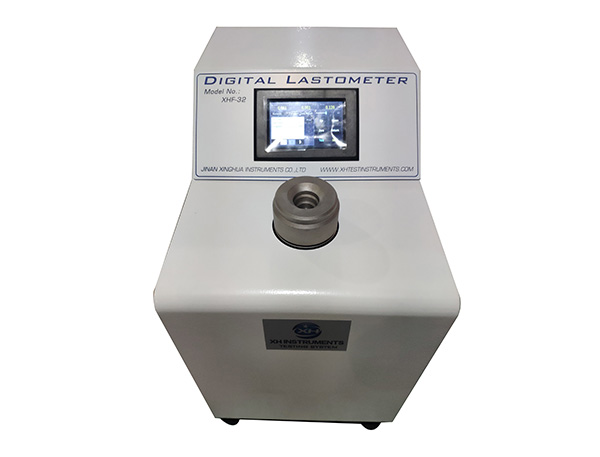

XHinstruments XHF-32 Digital Lastometer

Steel Ball: Φ6.25mm

Measure area: Φ25mm

Testing Speed: (12±2)mm/min

Specimen: Φ44.5mm

Capacity: 1000N

Units: Kg, Lb, N

Control mode: Micro-computer control, LCD display

Dimension (WxDxH): 46x39x50cm

Weight(Kg): 50Kg

Power Supply: 220V, 50Hz/60Hz, Single Phrase

Standard Configuration: Machine, User Manual, Calibration Certificate, Warranty Certificate

Product Description:

XHF-32 Digital Lastometer: A steel ball is pressed against the centre of the flesh side of a circular disk of leather securely clamped round its periphery. The pressure and the distension produced are recorded at grain crack and at burst.

Test Standards: DIN53325, ISO3379: 2015
