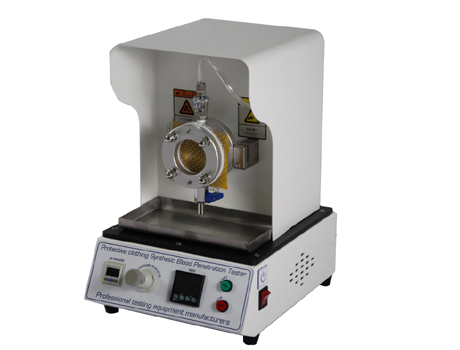

XHinstruments XHF-109 Synthetic Blood Penetration Tester

Inner diameter of flange slot: 57mm

Flange cover diameter: 57mm

Pressure range: 0-100Kpa, Resolution 0.01Kpa, LED display, adjustable

Test Pressure: Max 20Kpa

Timing: 0-99min59s, adjustable

Test station: 1 station

Specimen Size: 75mmx75mm

Dimension: 290mmx430mmx440mm

Weight: 20Kgs

Product Description:

The resistance of a protective clothing material to penetration by a liquid under pressure is determined by subjecting the material to the liquid for a specified time and pressure sequence and observing if visible penetration of the liquid occurs.

The the penetration test apparatus, the clothing material acts as a partition separating the hazardous liquid chemical from the viewing side of the test cell.

 Any evidence of liquid penetration constitutes failure. Results are reported as pass/ fail.

Test Standards: ISO 16602, ISO 16603, ISO 13994, BS EN 14126, ASTM F903, ASTM F1670, ASTM F1671
