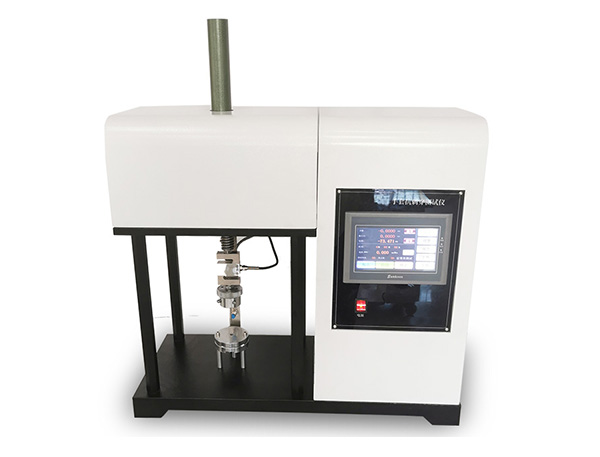

XHinstruments XHF-104 Footwear Compression and Puncture Tester

Load Cell: 3000Kg (30KN) for compression test; 200Kg(2000N) for puncture test

Test Units: Kg, N, lb

Compression Speed: 5mm/min

Puncture Speed: 10mm/min

Max Test Speed: 25mm/min can be set

Test Method: Compression test and puncture test

Test Accuracy: ±0.25%

Power Supply: AC 220V 50/60HZ

Weight: 120Kgs

Dimension: 710mmx300mmx760mm

Product Description:

Footwear Compression and Puncture Tester is used to determine the pressure strength of the safety shoe steel head and the durability of the sole.

Suitable for all types of safety shoes, steel head compression and steel medium plate durability puncture test, to prevent the safety performance of shoes caused by accident when the operator is dressed in the workplace.

Test Standards: GB/T20991 , EN ISO 20344, CSA-Z195, ASTM F2413, BS-953, GB21148...etc.

Product Features:

Large Touch screen operation, menu operation mode.

The position can be adjusted by jogging, and the test speed can be adjusted.

Mechanical parts are composed of non-corrosive structure and stainless steel material.

High Precision motor driving, stable operation and low noise.

One-button automatic test, easy to operate.

The machine is equipped with an upper limit protection device to prevent the limit displacement.

The two test modes (compression test and puncture test) are switched with each other for related test requirement.
