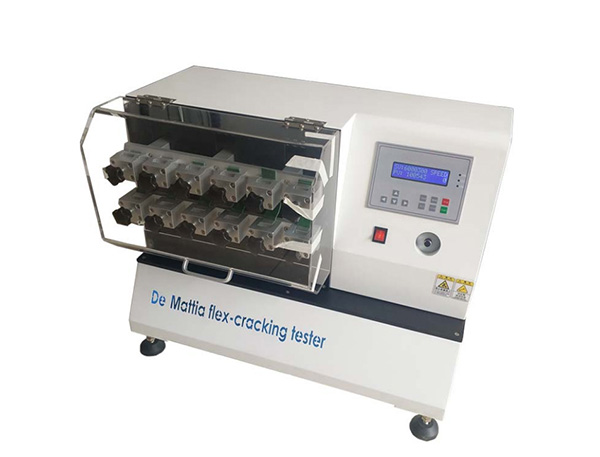

XHinstruments XHF-103C Demattia Flex Tester

Specimen Size: (L)125-155*(w)20-25*(D)mm

Clamps Max. apart: 70mm

Moving Clamp Stroke: 57mm

Clamps Min. apart: 13mm

Test Speed: 300±10 cpm (Adjustable)

Counter: LCD Display 0-999999

Test Position: 6 pcs (10 Pcs, 12 Pcs is optional)

Power Supply: AC 220V 50/60HZ

Dimensions ( L x W x H ): 680x460x580mm

Weight: 68kg

Standards: ISO 7854-Method A, BS 3424:Part9, GB/T 12586 Method A, EN ISO 2023, Annex E

Product Description:

Shoes Upper Material Flex Tester is to determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke, stop automatically when door open

Test Standards:

ISO7854-3.1 JIS-K6301，ASTM-D813，D430，BS-903，HG4-836，837，GB/T13934-92 GB/T 20991 6.5.1, GB/T12586-2003, HG/T 3086-2011, ISO4649, EN12770, ISO 20344
