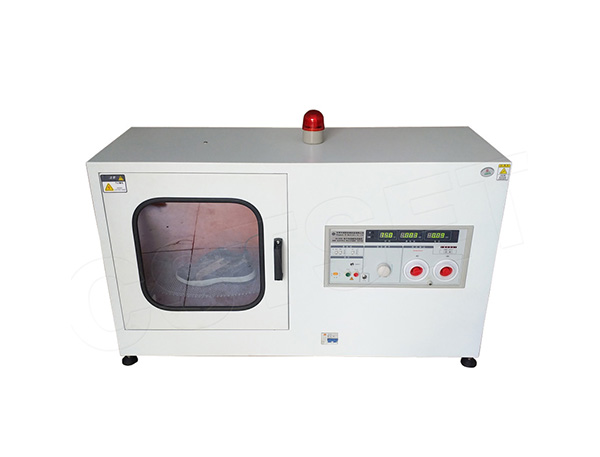

XHinstruments XHF-101 Shoe Dielectric Resistance Tester

Leakage Current: 0-10mA can be set arbitrarily

Output voltage range: AC: 0~20KV can be set arbitrarily

Test time: 0s-99s can be set arbitrarily

Power supply: AC 110V/220V 50/60HZ

Dimensions: 1150mmx460mmx800mm

Weight(Approx): 70kg

Product Description:

Shoes Dielectric ResistanceTester /Shoes Insulation Tester / Shoes Voltage Resistance Tester is to test if shoe soles or insulation materials can withstand voltage value, in order to understand the extent of its withstand voltage.

Test Standards: GB/T20991-2007, ASTM F2413-05, ASTM F2412 ,CSA-Z195, ISO EN20344-2011, GB/12011-2009...etc

Product Features:

Mechanical parts are composed of non-corrosive structures and insulating materials.

Equipped with standard stainless steel beads, not easy to rust.

One-button automatic test, easy to operate.

LCD display, breakdown alarm function.

Built-in insulating material to protect the operating edge and make safe when mis-operation
