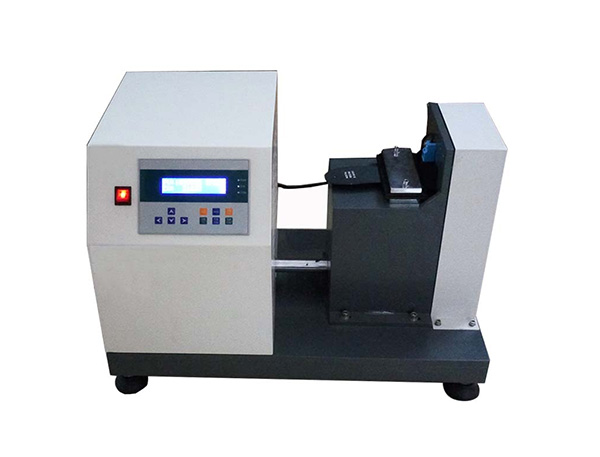

XHinstruments XHF-100 Penetration-Resistant Inserts Flexing Tester

Distance from the clamping plates: 70±1mm

Bending Stoke: 33±0.5mm

Testing Speed: 16±1Hz (960±60cpm)

Testing Times: LCD 0-9999999

Dimension: 650mmx400mmx450mm

Weight: 85Kgs

Power Supply: AC 220±10%, 50Hz/ 60Hz

Product Description:

Penetration-Resistant Inserts Flexing Tester is used to determine the flex resistance of penetration-resistant inserts for safety shoes.

Test Standards: ISO EN20344-2011, EN12568, ISO 22568-3:2019, 5.2,  ISO 22568-4:2021, 5.2

Product Features

LED-SLD806 integrated display control box, menu operation mode

One key automatic test, operation is easy.

Mechanical parts are made of non-corrosive structural and stainless steel materials

Automatic stop when specimen is broken.

Imported high-precision bearings are used for smooth and stable rotation and long active life.
