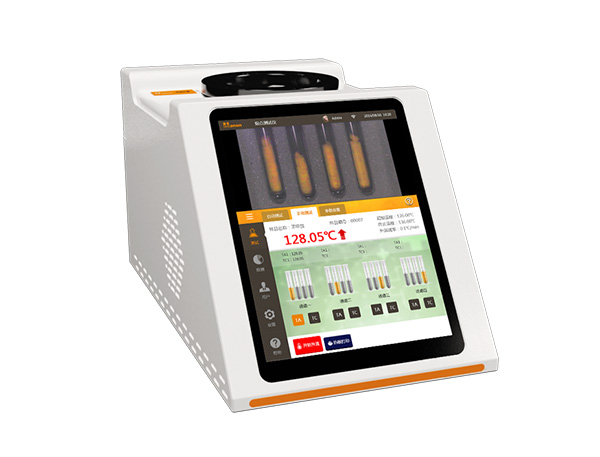

XHinstruments XHD-MPA-C Melting Point Tester (350℃)

Position Capacity: 4

Magnification of lens: 8

Display: 8 inch capacitive touch screen

Temp Range: 350℃

Temperature resolution: 0.1℃

Temp Accuracy: ±0.4℃（<200℃）±0.7℃（<300℃）

Temp Gradients: Step-less setting at 0.1℃--20℃

ID classify: 20

Camera&Video: Camera&Video

Model: Yes

Video Replay: Automatic

Graphic: 100

Methods Storage Capacity: 30

Rom Capacity: 16GB

FDA CFR21 part 11: No

Communication Ports: USB×3,RS232，Wi-Fi，RJ45

Product Description:

XHD-MPA series Video Melting Point Apparatus perfectly integrate video technology into melting point measuring.It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video etc. It provides better help for users to observe melting process of sample.

The instrument can be widely used in the chemical industry and pharmaceutical research. It is the essential equipment for production of drugs, spices, dyes, and measurement of other organic crystal substances.

Test Standards

Visual and Automatic Determination

It includes a color display to observe the phase transition, is equipped with a video camera and a video replay function which allows reviewing the melting point determination. It also suit for color samples, which tradition automatic melting point apparatus not available.

Available Testing 4 Samples Concurrently

Max concurrent sessions 4 samples each batch, record and track each result independently, meet FDA 21CFR part 11 requirements.

Multi-user ID Classify Function

Adopt User ID management function. Users ID are available for adding, deleting and jurisdiction setting.

All Screen Design

Adopt a 8 inch capacitive touch screen, with the brilliant Android system, let the operating easier.

Amazing Data Processing & Exporting

The methods, atlas and detailed result are available for storage. Connecting printer or all data export are both available.

Compliant with GLP, GMP(EU,UPS&CN) and FDA 21CFR part 11
