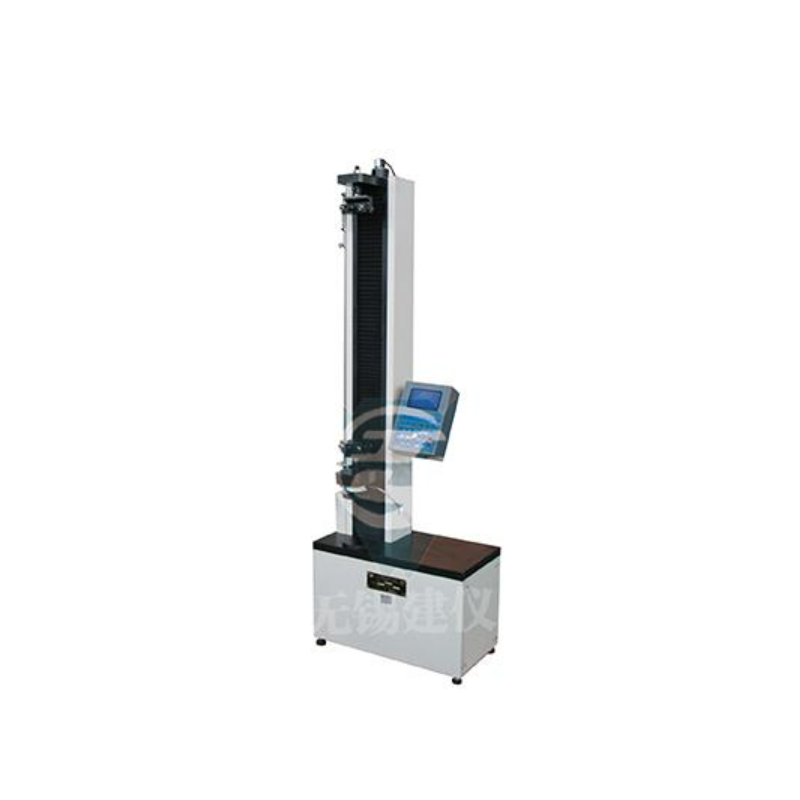

Maximum test force: 50kN
Test force accuracy: ±1%
Speed range: 0.2-500 mm/min
Displacement measurement: The resolution is 0.01mm
Tensile test space: 600mm
Compression test space: 700mm
Effective test width: 400mm
Circular specimen clamping diameter: Φ4～φ9mm
The diameter of flat sample holder: 0～7mm
The power supply: 220V±10%,50Hz
Dimensions: 760×500×1750mm
Force measuring system weight: 300/400kg
Used for testing of metal and non-metal stretching, compression, bending, cutting, tearing, stripping, etc.Meet the requirements of GB/ t16491-2008;It can also meet the testing requirements of various materials in GB/ISO, ASTM, JIS and other standards.
