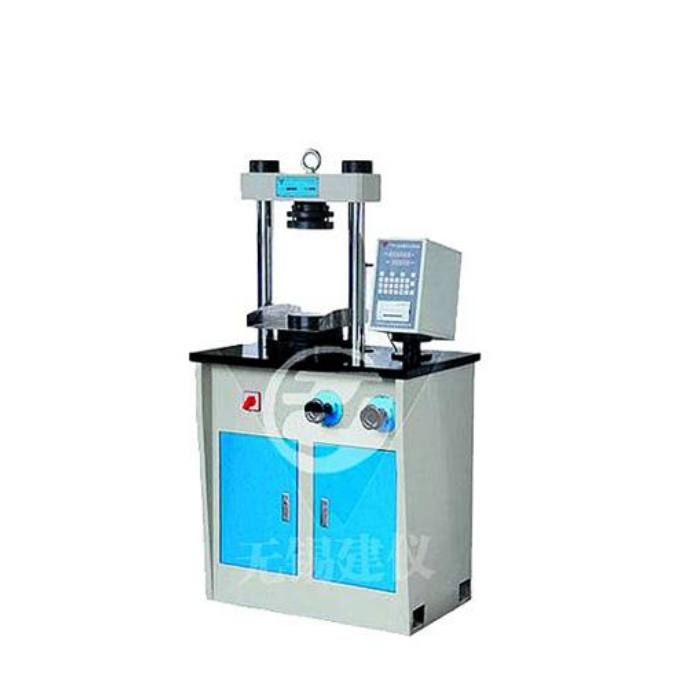

Purpose
For the determination of compression strength of cement specimen, and for the test of flexural and compressive strength of other nonmetallic material if equipped with special fixture. The testing conforming with the requirements of (ISO test method), GB/T 17671-1999.
Technical parameters
Max .capacity: 300kN
Accuracy: ±1%
Travel of ram: 120mm
Diameter of platen: φ150mm
Distance between platens: 280mm
Max. size of flexure specimen: 150mm×150mm×600mm
Max. distance between bearers: 450mm
Distance between bars: 150mm
Diameter ofbearer: φ30mm
Net weight: ≈450kg
