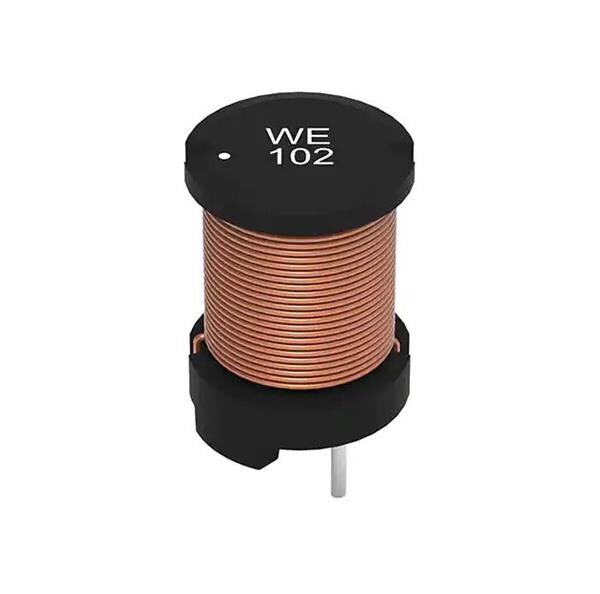

Wurth Elektronik 7687480222 Wirewound WE-TI HV High V 1014 2200uH 0.5A 2.4Ohm

Height: 14.5 mm

Length: 14.5 mm

Diameter: 10.5 mm

Core Type: Wirewound

Shielding: Unshielded

Tolerance: 5 %

Inductance: 2.2 mH

Lead Spacing: 5 mm

Core Material: Wirewound

Lead Diameter: 0.7 mm

Mounting Style: PCB Mount

Test Frequency: 10 kHz

Termination Style: Radial

Maximum DC Current: 500 mA

Saturation Current: 580 mA

Maximum DC Resistance: 2.5 Ohms

Self Resonant Frequency: 820 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
