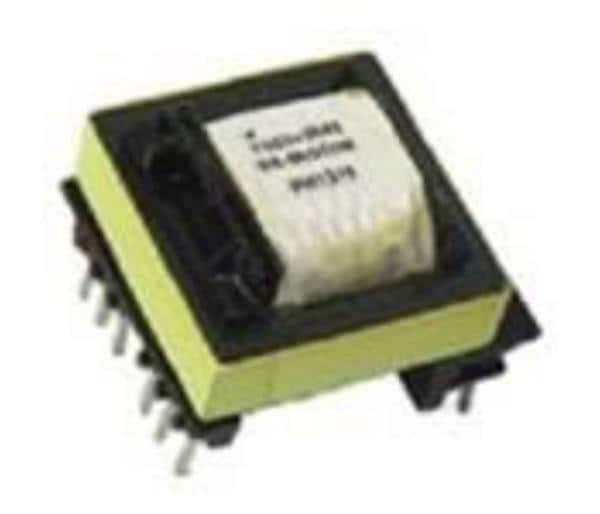

Wurth Elektronik 7508110100 Offline Flyback MID-UNIT PI Offline 2.64mH 2.15Ohm

Width: 24.38 mm

Height: 16 mm

Length: 20.32 mm

Inductance: 2.64 mH

Turns Ratio: 11.07:1

Power Rating: 2 W

Mounting Style: Through Hole

Primary Winding: Dual Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: Through Hole

Operating Frequency: 132 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 322 mA

Secondary Voltage Rating: 6.2 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
