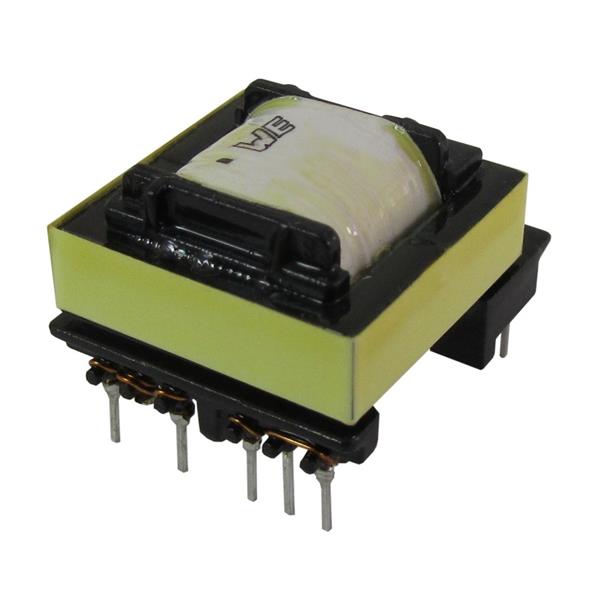

Wurth Elektronik 750343109 Offline Flyback WE-FB SMD Flyback Dialog Semi iW1830

Width: 26 mm

Height: 16 mm

Length: 22.2 mm

Inductance: 490 uH

Turns Ratio: 14.5:1:2.25

Unit Weight: 14.200 g

Power Rating: 15 W

Mounting Style: Through Hole

Primary Winding: Dual Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: Through Hole

Operating Frequency: 70 kHz

Primary Voltage Rating: 90 VAC to 264 VAC

Secondary Current Rating: 3 A

Secondary Voltage Rating: 5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
