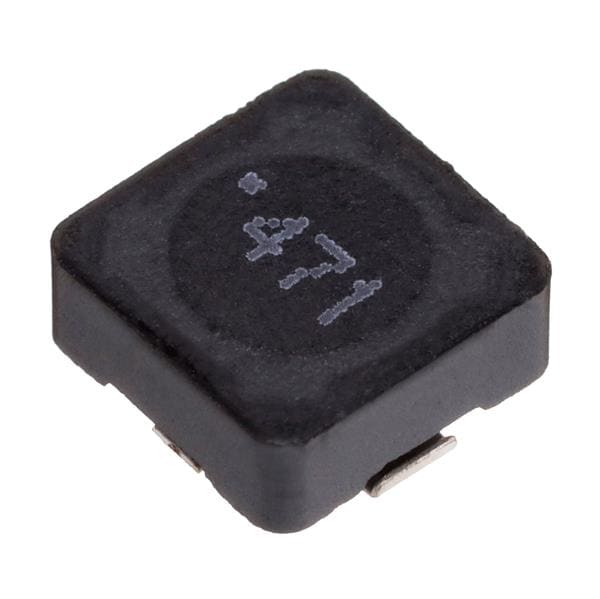

Wurth Elektronik 74477824 Power Choke Coil WE-PD 470uH 300mA DCR=4.18Ohms AEC-Q200

Width: 7.3 mm

Height: 3.2 mm

Length: 7.3 mm

Core Type: Wirewound

Shielding: Shielded

Tolerance: 20 %

Inductance: 470 uH

Application: Power

Termination: Standard

Unit Weight: 618 mg

Core Material: Ferrite

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 1 kHz

Termination Style: SMD/SMT

Maximum DC Current: 300 mA

Saturation Current: 310 mA

Maximum DC Resistance: 4.18 Ohms

Self Resonant Frequency: 4 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
