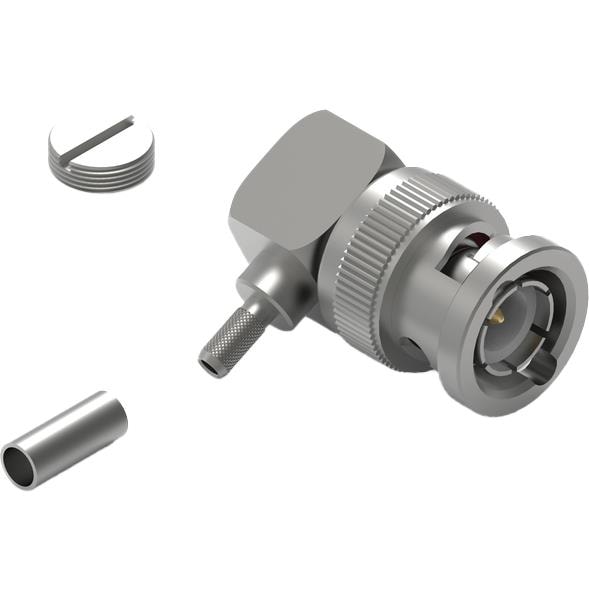

Wurth Elektronik 60736022210320 Plugs WR-BNC Soldered-Crimp Flexible Cable RG174/316/188 Unit Bag for 1pc
Model60736022210320
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: DC to 4 GHz
Impedance: 50 Ohms
RF Series: BNC
Body Style: Right Angle
Body Finish: Nickel
Orientation: Right Angle
Body Material: Brass
Mating Cycles: 500 Cycles
Insertion Loss: 0.8 dB
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 4 GHz
Minimum Frequency: DC
Termination Style: Crimp
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
