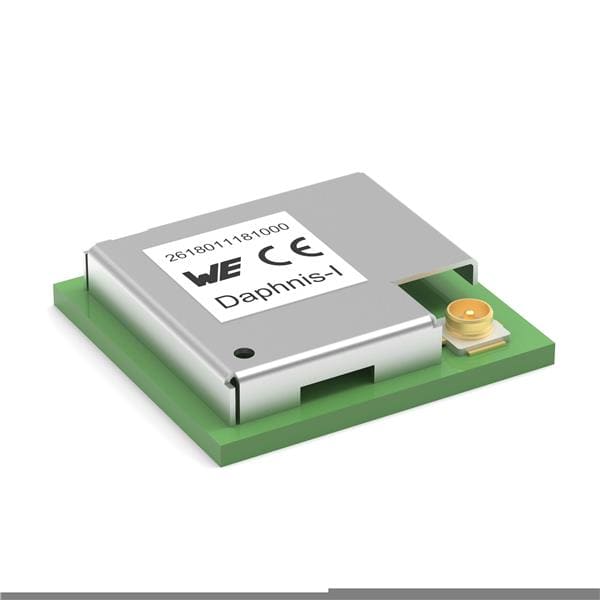

Wurth Elektronik 2618011181000 Radio Modules WIRL-LORA Daphnis-I Long-Range-WAN 868 MHz smart antenna configuration with RF shield 16 mm x15 mm x 3 mm

Data Rate: 50 kb/s

Frequency: 863 MHz to 870 MHz

Dimensions: 16 mm x 15 mm x 3 mm

Unit Weight: 1.240 g

Antenna Type: RF Pad, UMRF

Output Power: 13.4 dBm

Interface Type: UART

Moisture Sensitive: Yes

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2 V

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 6.9 mA

Supply Current Transmitting: 24.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
