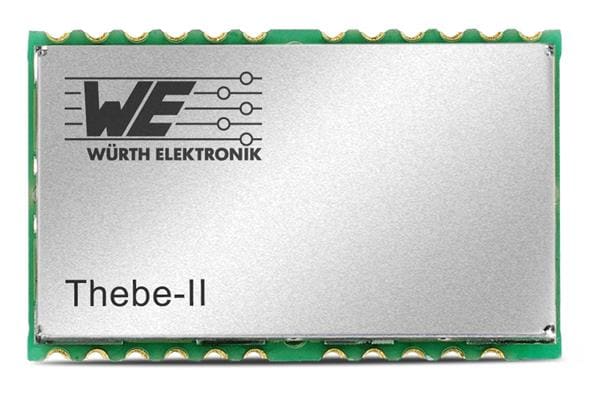

Wurth Elektronik 2609031181000 Sub-GHz Modules WIRL-PRO8 Thebe-II Radio module 868MHz

Frequency: 869.4 MHz to 869.65 MHz

Dimensions: 27 mm x 17 mm x 3.8 mm

Output Power: 27 dBm

Interface Type: UART

Moisture Sensitive: Yes

Protocol - Sub GHz: Sub GHz

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 2.2 V

Antenna Connector Type: External

Operating Supply Voltage: 2.2 V to 3.7 V

Supply Current Receiving: 12 mA

Supply Current Transmitting: 500 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
