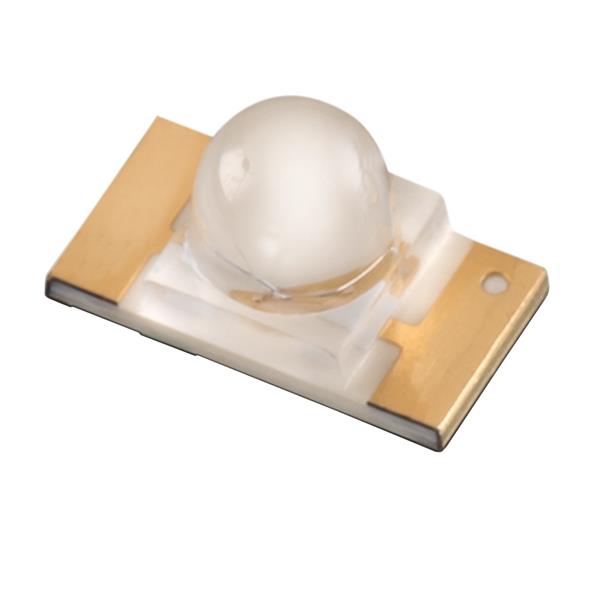

Wurth Elektronik 156120GS82500 Single Color LEDs WL-SMRW RvsMnt Mono Dome 1206 Green

Width: 1.6 mm

Height: 1.85 mm

Length: 3.2 mm

LED Size: 3.2 mm x 1.6 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 10 mg

Power Rating: 78 mW

Viewing Angle: 20 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.3 mm

Lens Transparency: Water Clear

Illumination Color: Green

Luminous Intensity: 1.5 cd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 3.3 V

Wavelength/Color Temperature: 520 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
