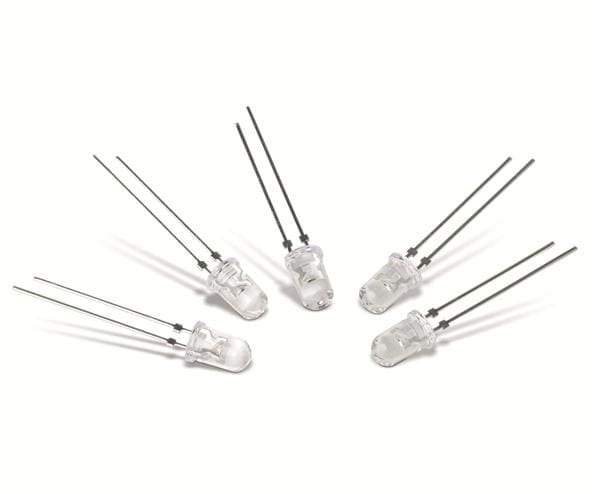

Wurth Elektronik 151033GS03000 Single Color LEDs WL-TMRW THT Mono Waterclr Rnd 3mm Grn

Width: 3.9 mm

Height: 5.3 mm

Length: 3.9 mm

LED Size: T-1 (3 mm)

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 200 mg

Power Rating: 114 mW

Viewing Angle: 30 deg

Mounting Style: Through Hole

Lens Dimensions: 3 mm

Lens Transparency: Water Clear

Illumination Color: Green

Luminous Intensity: 15000 mcd

If - Forward Current: 20 mA

Vf - Forward Voltage: 3.2 V

Wavelength/Color Temperature: 530 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
