Network anti-control system: Internal CAN's way, with interface board design, It can be converted to network port output at will
Signal output bits: 24-bit
Communication interface: Network interface output(class 6 network cable connections)
Circuit design: ARM embedded design for easy wireless control, remote control and mobile app control
Temperature control system: Six-way independent temperature control
Temperature control: Room temperature - 450 ℃, liquid nitrogen refrigeration: - 80 ℃ - 450 ℃
Column box temperature control accuracy: ±0.02℃
Program heating up: 21 Stage 21 level, 0.1 ℃ / stage
Show module: Large-screen LCD
Display accuracy: 0.01 ℃
Lift rate of column and box: 0~80 ℃ / min (adjustment increment 0.1 ℃ / min) up to 120 ℃ / min
Temperature reprogrammed repeatability: ≤1%
TCD detector sensitivity: S value ≥ 10000mv.ml/mg (benzene) )up to 12000 mv.ml/mg (benzene)
Baseline noise: ≤10uv
Baseline Drift: ≤50uv/30min
Detection limit of FID detector: ≤5 x 10-12g/s(cetane)
Baseline noise: ≤2 x 10-14A
Baseline Drift: ≤1×10-13A/30min（After the instrument stabilizes for 2 hours）
Detection limit of ECD detector: ≤1.0 x 10-13g/s （r-666）
Baseline noise: ≤40uv
Baseline Drift: ≤100uv/30min
Detection limit of FPD detector: ≤1.4 x 10-12 g/s(p), ≤5×10-11g/s(S)
Baseline noise: ≤20uv
Baseline Drift: ≤50uv/30min
Extended: ≤6 external events can be added
Automation engineering: Can be increased: automatic ignition function, automatic sampler connection, four-way flow pressure display function, optional counter-control workstation to achieve counter-control

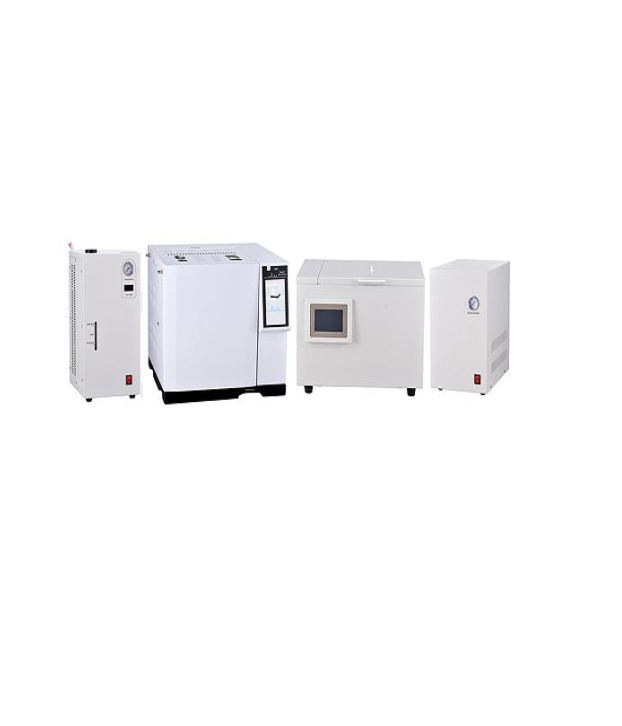

*Images are for illustrative purposes only
