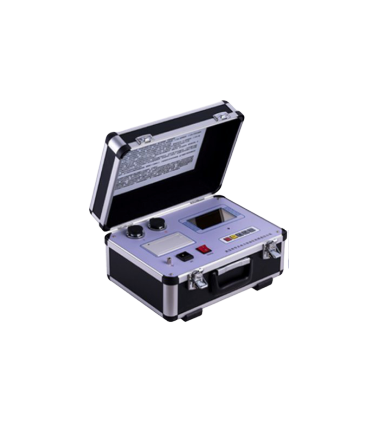

Wuhan HTZZ-3A Wuhan HTZZ-3A Transformer Resistance Tester (1μΩ~20kΩ, 3A)

- Working condition: Temperature: 0℃～40℃; Relative humidity: ≤85%
- Measurement range: Seven-gear range
+ 1μΩ～20mΩ
+ 20mΩ～200mΩ
+ 0.2Ω～2Ω
+ 2Ω～20Ω
+ 20Ω～200Ω
+ 200Ω～2kΩ
+ 2kΩ～20kΩ
- Measuring accuracy: ±(0.2%+2d)
- Max resolution: 1μΩ
- Constant current source:
+ 3A(1μΩ～20mΩ、20mΩ～200mΩ、0.2Ω～2Ω)
+ 300mA(2Ω～20Ω)
+ 15mA(20Ω～200Ω)
+ 1.5mA(200Ω～2kΩ)
+ 150mA(2kΩ～20kΩ)
- Working voltage
+ DC: 12V～16.8V
+ AC: 220V
- Power Dissipation: ≤15W
- Dimension: 365*330*180mm3
- Weight: 5kg(including test clamp and test lead)
Accessories
- Host
- Test Wire: 2
- Ground wire
- Fuse
- Power Cord
- Manual, Report, Certificate
