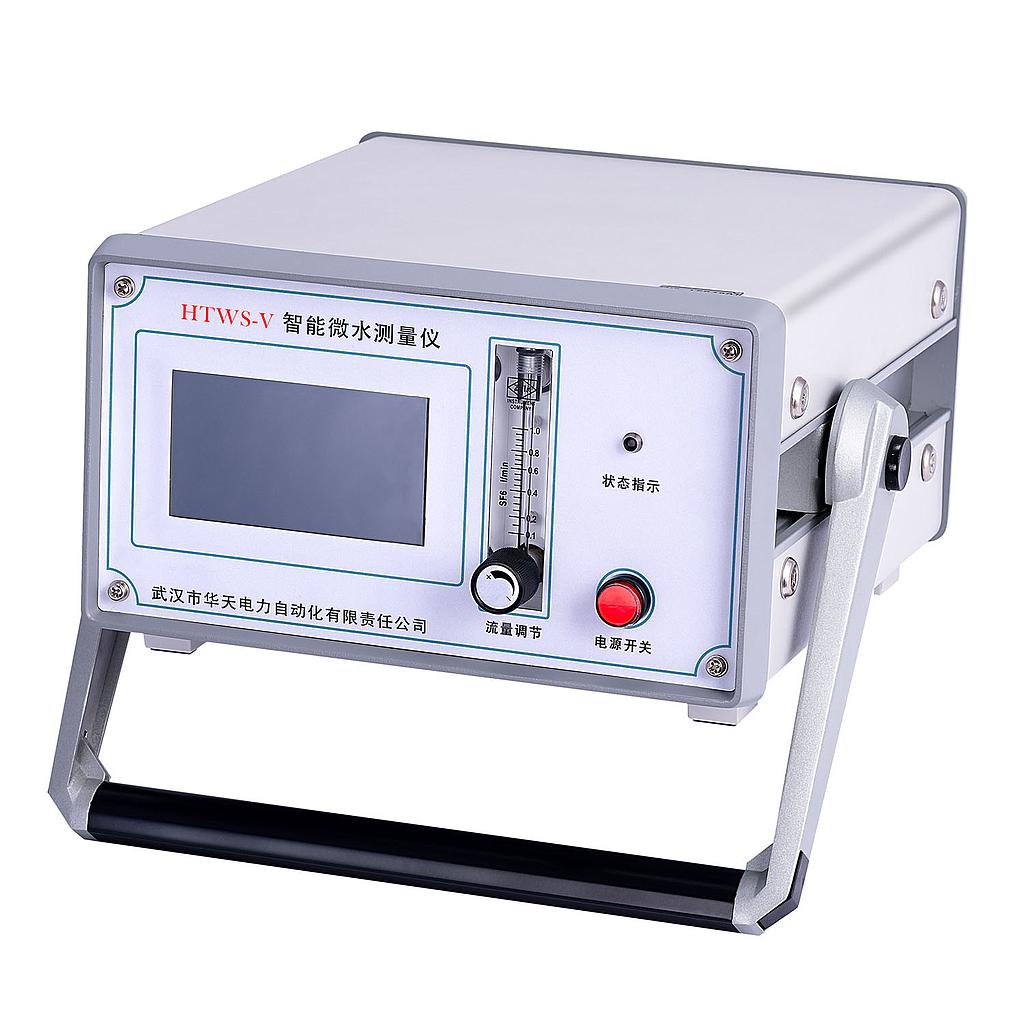

Wuhan HTWS-V Dew Point Meter (-80℃~+20℃, 0~19999uL/L)

- Measurement Range
+ Dew point value: －80℃～+20℃
+ Micro water value: 0～19999uL/L
- Accuracy:±0.5℃（－60℃～＋20℃）
±1.0℃（－80℃～－60℃）
- Resolution:
+ Dew point value: 0.1℃
+ Micro water value: 1uL/L
- Response time (+20℃,0.1Mpa)
+ 63% need 5s, 90% need 45s (-60 ℃ ~ +20 ℃)
+ 63% need 10s, 90% need 240s (+20 ℃ ~ -60 ℃)
- Sampling flow rate: 0.6L/min±20%
- Pressure range: 0～1.0Mpa
- Temperature: －20℃～＋60℃
- Humidity: 0～100%RH
- Storage Temperature: －20℃～＋80℃
- Charging time: 4 hours
- Dimension: 250×150×300mm3
- Weight: 3.5kg
Accessories
- Host
- Connector
- Power Cord
- USB-RS232 CAble
- RS232 Cable
- Material Tape
- Exhaust Pipe
- Intake Pipe
- Manual, Report, Certificate

Datasheet
