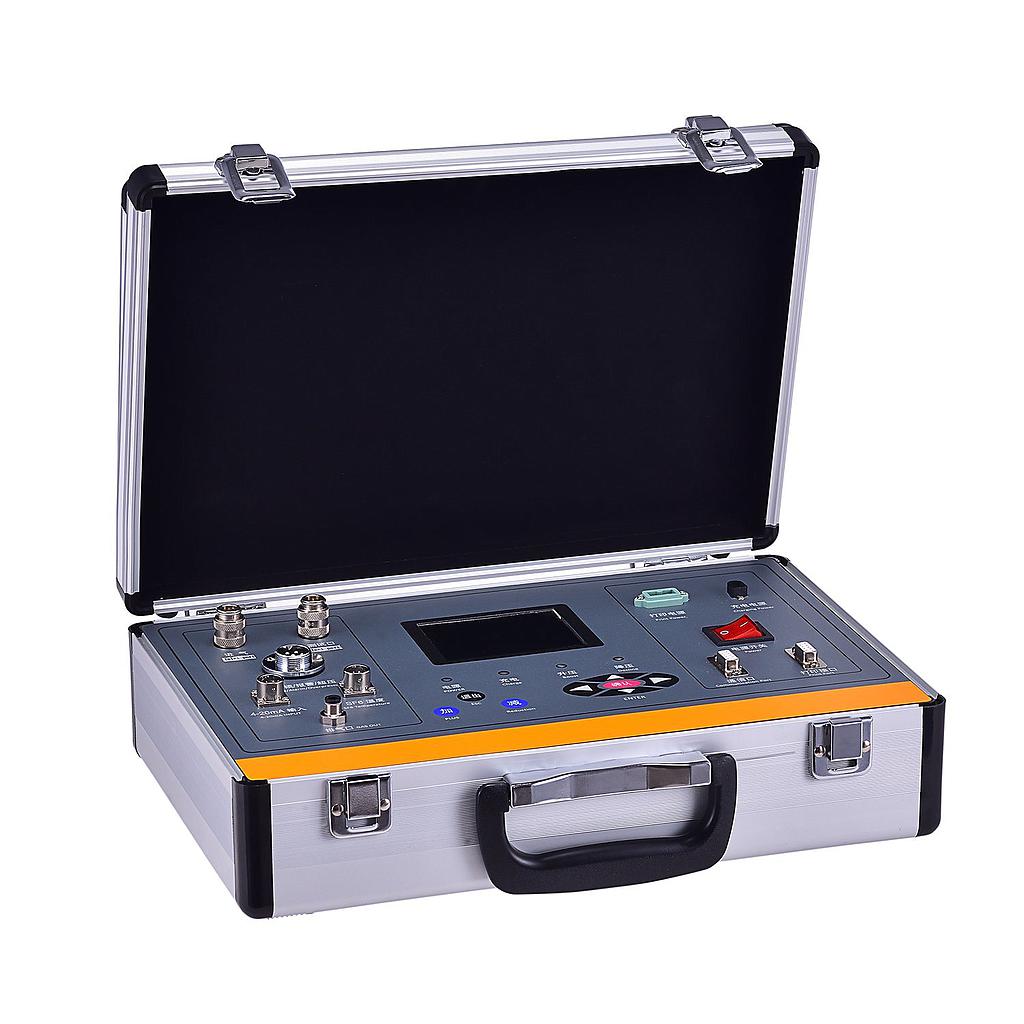

Wuhan HTMD-H SF6 Density Relay Tester (0~1MPa, -20℃~80℃)

- Working voltage: AC220V, 50Hz
- Power: 50W
- Accuracy: 0.2
- Pressure measurement range: 0～1MPa
- Pressure measurement resolution: 0.001MPa
- Temperature measurement range: -20℃～80℃
- Temperature measurement resolution: 0.1℃
- Humidity: ≤90%RH
- Test objects:
Single alarm, single atresia, single alarm & single atresia, single alarm & dual atresia
- SF6 density display mode: The pressure in the test environment, the equivalent pressure at 20℃
- Display: 320×240 LCD
- Operation: Rotating mouse
- Printer: High-speed micro printer
- Print method: Report type
- Storage Capacity: Save 50 test results at the same time
- Dimension:
+ Host: 400×320×160mm; Weight: 6.2kg
+ Accessory: 400×370×200mm; Weight: 4.8kg
Accessories
- Host
- Material Tape
- Test Wire
- Connector
- Test pipe
- Intake Pipe
- Gas Tank
- Manual, Report, Certificate

Datasheet
