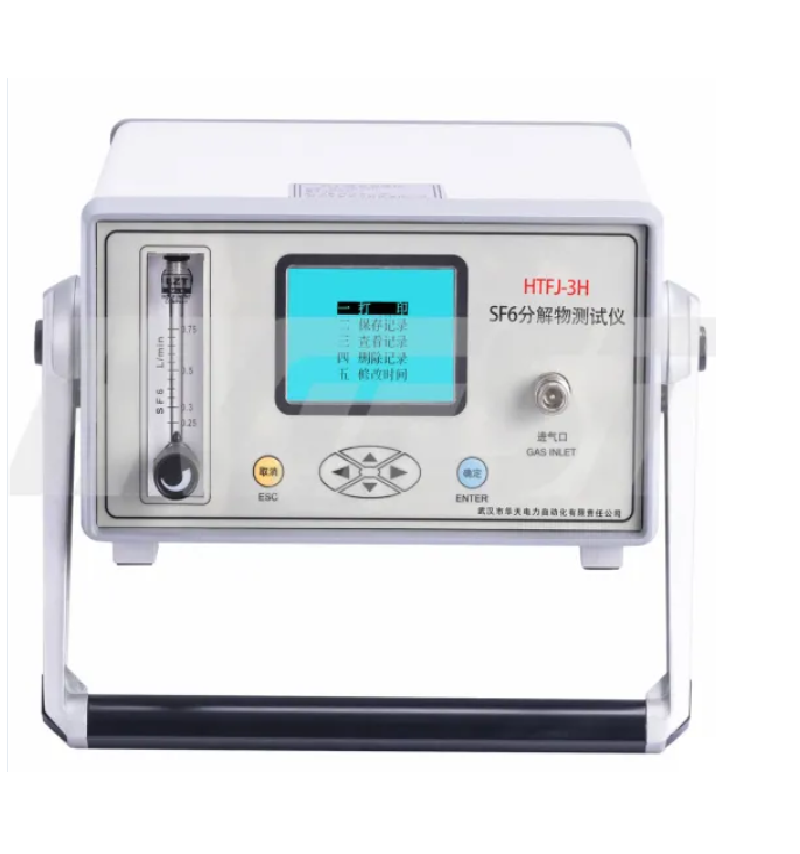

Wuhan HTFJ-3H SF6 Decomposition Tester

H2S
- Measuring range：0～100ppm
- The minimum detectable value：≤0.1ppm
- Accuracy：±0.5%
- Repeatability：≤1%
SO2
- Measuring range：0～100ppm
- The minimum detectable value：≤0.1ppm
- Accuracy：±0.5%
- Repeatability：≤1%
CO
- Measuring range：0～1000ppm
- The minimum detectable value：≤1ppm
- Accuracy：±0.5%
- Repeatability：≤1%
Temperature: －30℃～＋60℃
Humidity: 0～100％ RH
Power supply: AC 220V; Built-in rechargeable battery
Battery performance: Charging time : 20 hours ; can work for 10 hours
Weight: 5kg
Dimension: 250×150×300mm3
Working temperature: －40℃～＋80℃
Test current: 20A，30A
the measuring range: 0～199.99mΩ
Accuracy: Class 0.5
The test terminal of ground wire: 2~5 terminal
Power supply: 220V±10% 50±5 Hz
Accessories
- Host
- Instrument Case
- Connector
- Intake Pipe
- Exhaust Pipe
- Power Cord
- Manual, Report, Certificate

Datasheet
